#2 burke hand-operated horiz-spdl production mill 25326

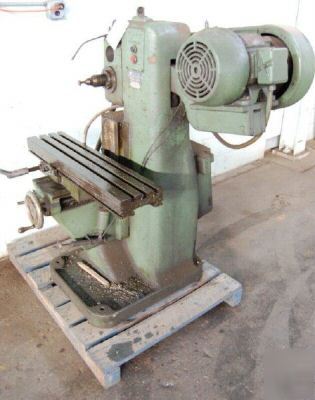

#2 BURKE HAND-OPERATED HORIZONTAL-SPINDLE
New 1966, Serial No 6681, Model 2,
Manual Rise and Fall Head Travel
Table Dimensions (Overall) W x L........ 8" x 36"
Table Longitudinal Travel (X-Axis)...... 25"
Saddle In-Out Cross Travel (Z-Axis)..... 8"
Knee Vertical Travel (Y-Axis)........... 15"
Spindle-Head Vertical Travel (Y-Axis)... 5"
Spindle-Center to Table-Top, Maximum.... 17"
Spindle Taper........................... #40 NSTD
(15) Spindle Speeds, Range.............. 50 to 2370 RPM
Spindle Motor, Horsepower............... 2 HP
Floor Space Required, L x D............. 4' x 5'
Weight, Approximately................... 1500 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $650.00
