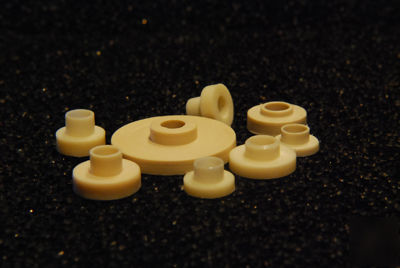

Assortment of 80 bushing 8X10PCS.
Up for sale 80 pcs. of brand new Bushing:10 pcs. from each dimension mentioned below.
Usage: For insulation purpose of heated metal components and for tightening screws. Bushing and heat sink pad must be used in combination.
Characteristic: Insulation, heat sink and RoHS compliance.
Dimensions: BUSH TO-220, BUSH TO-220A, BUSH TO-220B, BUSH TO-220D,
BUSH TO-3, BUSH TO-3A, BUSH TO-3B, BUSH TO-3C.
Tensile strength: 1000 Kg/cm2 (ASTM D638)
Anfractuous strength: 1300 Kg/cm2 (ASTM D790)
Anfractuous elasticity: 50000 Kg/cm2 (ASTM D790)
Rockwell Hardness: 120 R-Scale (ASTM D785)
Specific volume resistivity: 1016 cm (ASTM D257)
Dielectric strength: 20 KV/mm (ASTM D149)
Dielectric constant (106Hz): 3.3 (ASTM D150)
Dielectric factory (106Hz): 0.016 (ASTM D150)
Arc resistance: 90 sec. (ASTM D495)
