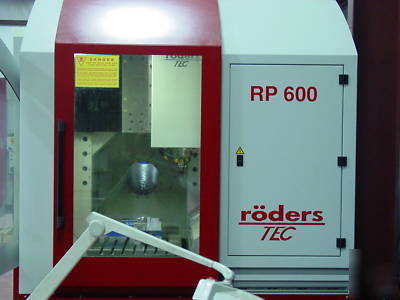

2003 roeders RP600 high speed milling center


2003 Roeders RP600 High Speed Vertical Machining Center. Unit is in excellent condition and can be viewed under power as needed. Please review and contact Everett at (***)-930-9646 with any and all questions pertaining to this machine.
1. All orders are subject to acceptance by 520 Machinery Sales.
2. Quoted prices are subject to final confirmation at the time the order is placed.
3. Stock subject to prior sale.
5. Quoted prices are FOB on location, unless otherwise specified.
6. The manufacturer s warranty shall be exclusive. Seller makes no warranty respecting the merchandise described herein, whether written, oral or implied, including any warranty of merchantability or fitness for purpose.
8. Seller shall not be liable for any loss or inconvenience caused by non-delivery, delay in delivery or by reason of any cause whatsoever, beyond the control of the seller.
11. No modification shall be affected by the acknowledgement or acceptance of purchase order containing different conditions.
High Speed CNC Vertical Machining Center

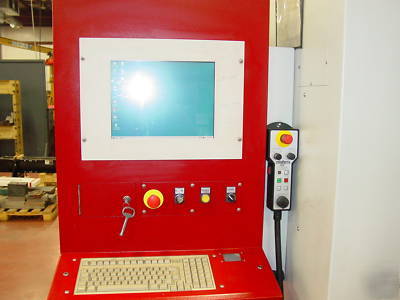

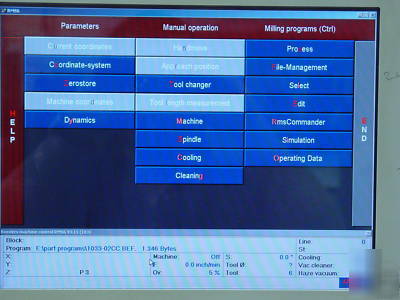

Control............................................................................. Roeders RMS6 Control
Table Size....................................................................................... 27.5" X 21.6"
Max Table Load.................................................................................... 1,760 Lbs
X-Axis Travel............................................................................................ 23.62"
Y-Axis Travel............................................................................................ 19.69"
Z-Axis Travel............................................................................................. 11.81"
Spindle Taper........................................................................................... HSK-50
Spindle Speed................................................................................... 36,000 RPM
Spindle Motor............................................................................................. 25 HP
Rapid Traverse Rates.............................................................................. 710 IPM
Cutting Feed Rates.................................................................................. 500 IPM
Tool Changer..................................................................................... 30 Carousel
Machine Dimensions................................................... 149" L X 67" D X 103" H
Automatic Tool Cleaning System
Fiber Optic Ethernet Network Card
Software For Re-Cutting Partial Programs
