> 20" clausing drill press 10 speed very nice

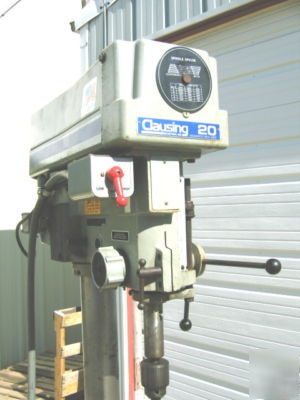

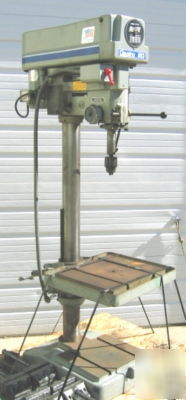

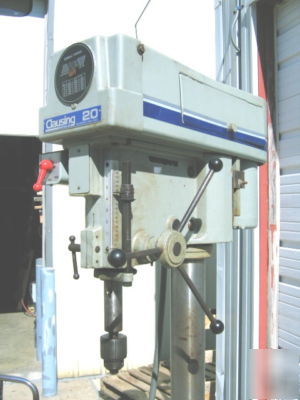

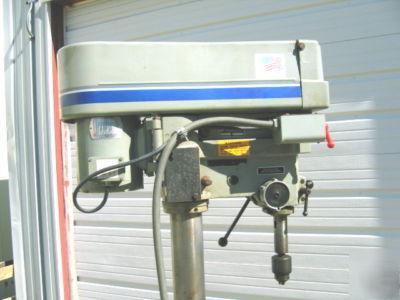

20" clausing drill press 10 speed very nice
Manufacturer ...... CLAUSING Industrial Inc
Size ....................... 20" Swing
Type ...................... 10 Speed V Belt Step Pully Floor Model

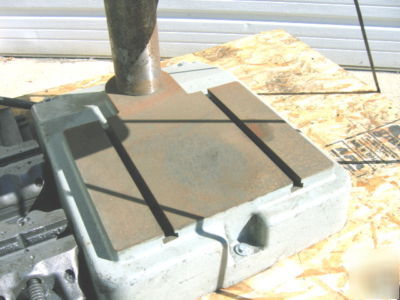

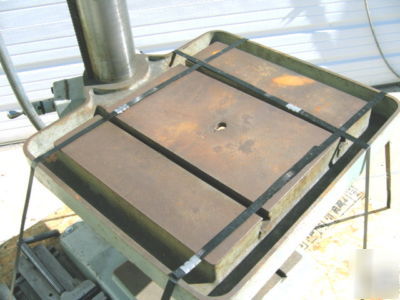

Table Size ............ 19-1/2" x 22" Wet Style T-Slot
Table Adjustment Approx. " Vert travel
Head Adjustment Approx. " Vert travel
Spindle Taper .. Morse Taper #3 MT3 3MT
Voltage ................. 480v
Motor ................... 1-1/2hp 3 phase 2 speed 480 volts only 850/1725 rpm
Spindle rpm .......... 100 - 1925
Dimensions .......... 75 Overall height
Condition ............. Very Nice used, nice quiet running machine
Base size . 13 x 15-1/2 T-Slotted
Equipped with ....... 3/4 Jacobs drill chuck, Drum switch for changing spindle speed from high to low. This drill does not have a reverse switch but you can always put one on it.
The table moves very nice up and down. This has a 5 speed step pully system with a 2 speed motor.
Low rpm range is from approx. 100-950
Hi rpm range is from approx. 225-1925
This item weighs approximately 695 pounds or so, I have not weighed it so that is only an estimate.
