Origa rodless mounted air slide 17" P124-s/20X440MMBM
ORIGA RODLESS MOUNTED AIR SLIDE 17" P124-S/20x440MMBM

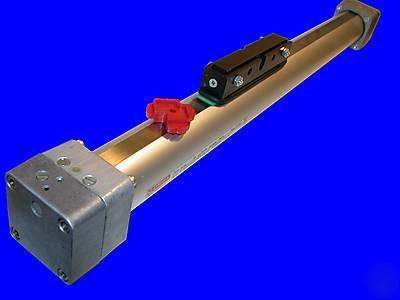

This is a Brand New Hoerbiger Origa Rodless Air Slide, Type P124-S/20x440MMBM, 40mm (1.574") Bore Diameter with over 17 Inches(440MM) of Stroke - 120 PSI capacity.
Space Saving- The lack of a piston rod allows for nearly half the space requirement of a rod type pneumatic cylinder. The result is a simpler, less costly installation reducing the amount of hardware and design time.
The cylinder barrel of extruded anodized aluminum has a slot along its entire length. To provide rigidity the bore is eccentric to the outside diameter.
A flexible hardened stainless steel inner band running the entire length of the bore and passing through the piston provides a near-zero-leakage metal to metal seal. An outer band of the same material acts as a cover over the slot preventing foreign particles from entering into the cylinders interior.
The aluminum piston is fitted with synthetic bearing rings. The power transmission outward takes place through a positive, physical connection through the slot to the external piston mounting. This solid guide permits the acceptance of external forces and moments and minimizes frictional losses.
The extensive experience in the development and production of rodless cylinders, as well as the use of high quality components and materials, ensure a very serviceable design lending itself to high operating safety and optimum performance.
This unique design, using only 4 main components, makes ORIGA cylinders reliable in operation and simple to maintain, providing long trouble free service.
Adjustable cushioning is provided as standard and ensures the piston stops smoothly - even at high speeds.
The ORIGA permanent lubricating grease eliminates the need for regular oil mist lubrication and provides long service life. Cylinders can be used in applications where maximum cleanliness is required. (e.g. electronics pharmaceutical and food processing industries).
The construction of the ORIGA rodless cylinder allows for a low friction characteristic permitting extremely slow traversing speeds.
This is a very expensive and precision air slide that measures 29" overall.
http:// /pdf_catalogs/new2000P120_1.pdf#search='origa%20p124'
For more than 20 years Origa cylinders have provided solutions to linear motion problems in all types of industry.
