Digiray rgx 3D reverse geometery x-ray system for ndt
Digiray RGX 3D Reverse Geometery X-Ray System

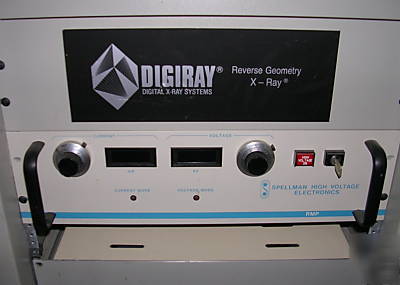

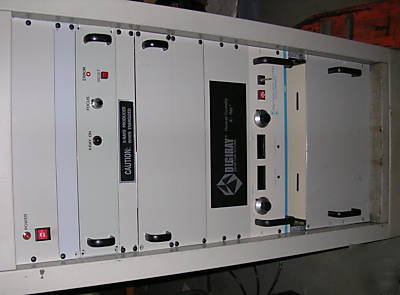

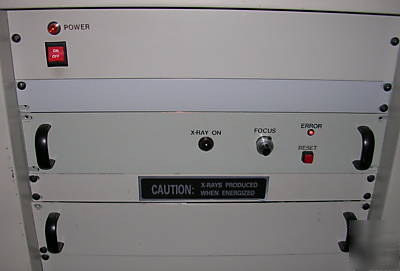

I made a half-hearted effort to power this thing up, with the Digiray component second from the top showing an Error LED. That component is either a Digiray DAV or a DAV003. I think the 003 part is the serial number, as it appears on all the other Digiray components as well. So early in the production run we ll say. Now I am not surprised by an Error message as there are all sorts of cables that aren t attached to anything. Most glaringly, the HV cable between the Spellman HV Power Supply and the Digiray HV piece, TCM or TCM003, is not installed. That cable I do actually have but quite frankly I am not all that anxious to start generating Xrays so I left it out. I start getting nervous when the HV power supplies top 1000 volts regardless of the current capabilities. This Spellman piece can produce 125 killivolts at 2.4ma. The Killi part is what gets my attention.

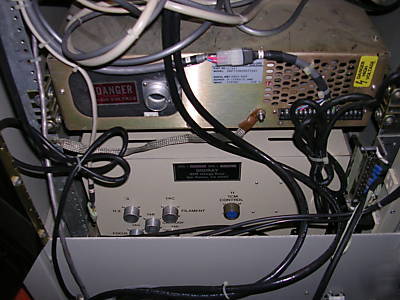

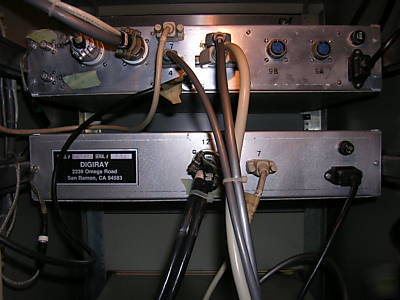

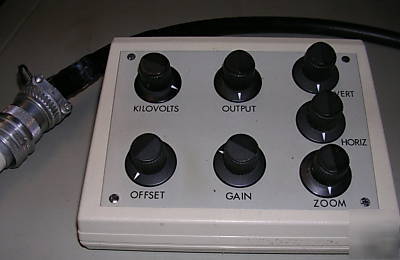

There are a number of cables that look like they would be necessary based on the number of large holes in the lower TCM unit, as you can see from the pictures. I have NONE of those cables and no idea what they would connect to (other than the HV cable previously mentioned). There is no documentation or software or other parts available other than the little remote control gizmo, an RP or RP003 pictured. No idea what that attaches too. Please check out my other listings for more cool lab and test equipment. Check back often!
