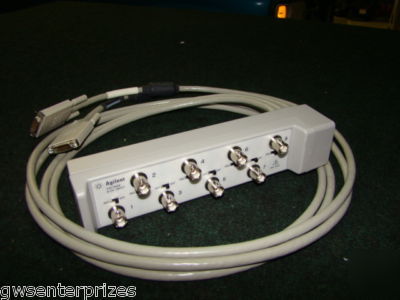

Agilent E1432-61602 8-channel vxi voltage breakout box
used Agilent / HP E1432-61602 8-Channel Voltage Breakout Box, from local aerospace company reduction sale,
HP E1432-61602 Voltage-type Break Out Box
In this type of Break Out Box the signal is sent straight through to the sub-miniature D connectors on the HP E1432A/33A.
Each connector on the HP E1432-61600 and HP E1432-61602 Break Out Box has a small manual switch next to it. When this switch is in the GND position the outer shell of the connector is grounded to the chassis ground of the VXI mainframe. When it is in the DIFF position it is not grounded to the mainframe and will float if not grounded elsewhere in the system (such as at the sensor). The connector shell should not be allowed to float: if the switch is in the DIFF position the shell should be grounded elsewhere in the system.
