20" thrt 14" h roll-in tf-1420 tilt frame band saw, ver
20" Thrt 14" H Roll-In TF-1420 Tilt Frame BAND SAW, Ver

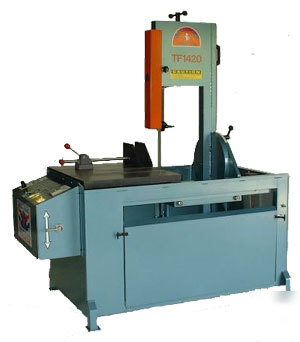

20" Throat 14" Height Roll-In TF-1420 Tilt Frame BAND SAW, Vertical, 2 HP 3 Phase
Provides Tilt-Frame Versatility for all Types of Jobs
A vertical bandsaw that combines large capacity with versatility
and can accommodate small and large work in nominal settings as
well as at variable angles (0 to 45 ) left or right: the TF1420 can t
Roll-In s Tilt Frame Bandsaw can do all the operations our EF1459
Model can do, plus offering the advantage of mitering simply by
tilting the frame without having to remove the work.
The TF1420 has the power, speed control, and feed pressure
required to ensure maximum accuracy and efficiency. This saw
requires no extra training to master. It is easier to operate, equal
to any task, and is less expensive than the comparable saws in its
Simple to operate, the TF1420 is a rugged machine built for many
trouble-free years of service.
Capacity Under Guides 20 under guides @ 90
Blade Length 1 x 12 11 0.035 thick (bi-metal)
Blade Guards Blade guard moves up and down with guide bar to ensure operator safety when cutting
Blade Speeds 70 to 400 sfpm digital speed control with LCD readout
Feed System Infinitely adjustable air over hydraulic cylinder for feed control from 0 to 175 lbs.
Motor 2HP 220/440V three-phase (TEFC)
Coolant - blade misting system
