Digital cctv color camera model w/3.5 to 8MM auto lens

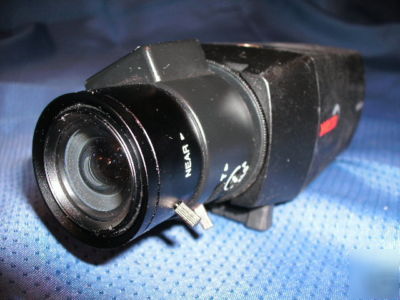

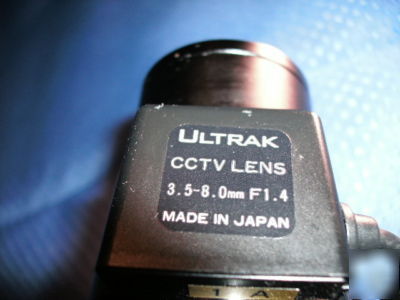

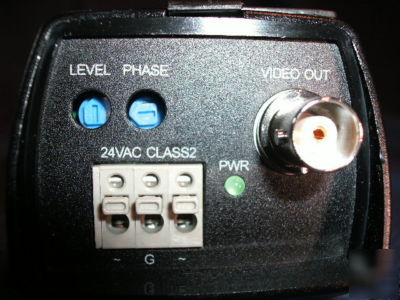

ULTRAK DIGITAL COLOR CAMERA MODEL KC 552 BCN-24 volt a/c with a 3.5 to 8mm AUTO IRIS lens

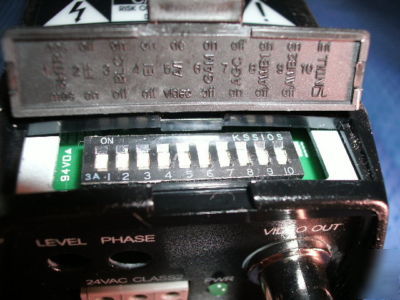

The KC552BCN DSP color security cameras provide true-color images especially designed for closed-circuit television (CCTV0 and security surveillance applications. 1/3 CCD imaging device and can be used with a variety of lenses and mounting accessories. The camera will operate in multiple lighting conditions due to the advanced DSP (digital signal processing) and backlight compensation circuitry that yields illumination sensitivity of 1.25 LUX. Features also include switch programming for line lock, flicker prevention, and AWB-automatic white balance as well as camera selectable CS/C lens options. The camera provides 330 TV lines of resolution, built in electronic shutter also allow shutter speeds in the range of 1/60 to 1/100,000. CCD iris function automatically sets the brightness of picture by changing the shutter speed of the camera according to the incident light when using a manual iris lens.

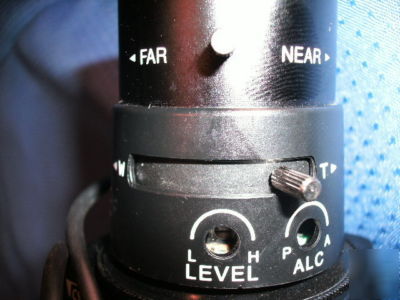

Accepts 2 types Auto iris lenses (DC/Video)
Accepts CS/C-mount lenses without adapter
Electronic owners manual included, also a guide related to basic CCTV system installation to assit you with set up (PDF on disc)
