Yokogawa 2533 -13 digital power meter 3 phase tested
YOKOGAWA 2533 -13 DIGITAL POWER METER 3 PHASE TESTED

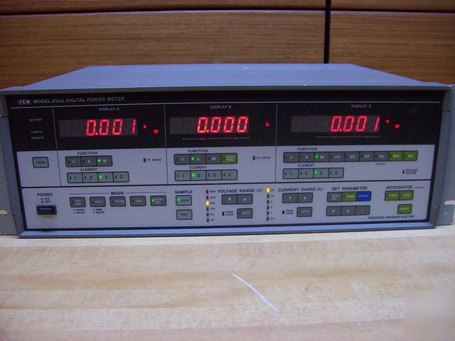

Yokogawa 2533-13 Digital Power Meter
The Yokogawa 2533 Digital Power Meter provides accurate power measurement of distorted waveforms with simple and fast flat-key controls. The unit provides a direct reading of voltage, current, power in each phase or total power, apparent power, reactive power, power factor, and more. The high-precision and wide frequency band analyzing function makes Model 2533 useful for diverse fields of applications including measurements, tests and inspections in R & D and on production lines. Features - Three Displays measures V, A, W, V, A, VA, var, PF
- Measures single phase, 3-phase, 3-wire, 3-phase, 4-wire power systems
- Frequency range of 10 Hz to 20 kHz
- 6 voltage ranges (30, 60, 100, 150, 300, 600V)
- 6 current ranges (.5, 1, 2, 5, 10, 20A)
- Simultaneous display of V, A, and W with 0.1% accuracy
- Provides an Integrator option (Wh or Ah display) - Has Rack Mounts attached Unit has been tested to turn on only, it is in good shape with minor signs of use. This UNIT IS A WORKING PULL from a CORPORATE ENVIRONMENT and is GUARANTEED NOT DOA. Comes with Heavy Duty Power Cable. store code(s): QLTOO, cw
