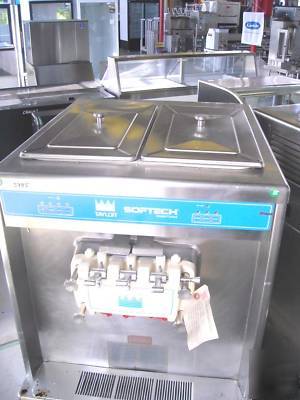

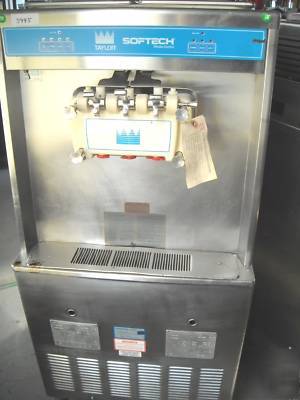

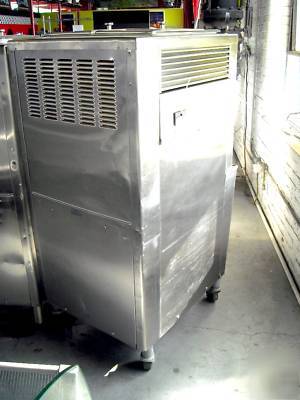

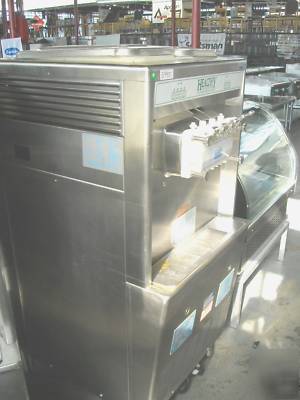

Taylor model Y754-33 soft serve ice cream freezer


Vanilla/Chocolate/Twist Floor Model
Soft Serve Ice Cream Freezer & Yogurt
For serving two flavors separately or together-has Taylor's most advanced special features for high production of smooth, superior soft-serve with consistently profitable overrun.
With mix in the thermostatically controlled, refrigerated hoppers, and the switch on AUTO, you always have soft-serve ready for immediate serving. A new, accurate, and reliable temperature-sensing control keeps all product in the freezer at the right temperature and texture for best flavor.
It is equipped with a MIX LOW light that automatically comes on when the freezer is low on mix.
Each freezing cylinder and mix hopper form one hermetically sealed unit. Special foamed-in-place insulation. Compressors and refrigeration system designed especially for low temperatures and heavy duty. Refrigerant Freon 502 makes direct contact with precision-honed stainless steel inner shell.
The efficient freezing cylinders of this model-designed for fast freezing-are aided by powerful beater motors (with vibration-dampening, shock-absorbing gear suspensions that are especially smooth and quiet) and by heavy-duty refrigeration units.

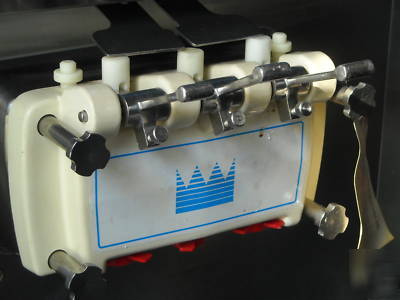

It can serve steadily for your peak periods-one flavor from each end nozzle; two flavors together from the center. The standard non-metallic door utilizes the latest developments in heavy-duty synthetic materials-combining structural strength and shock-resistant qualities with great insulation value to resist condensation and frost formation.
Behind the beautiful stainless-steel exterior is Taylor's powerful, electrically welded structural-steel frame and base-the most rigid and rugged in the industry.

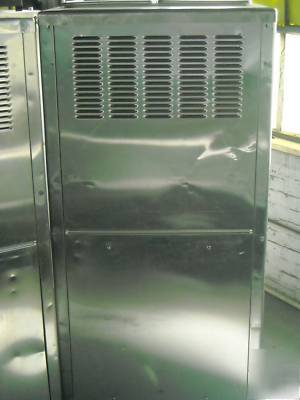

All controls and components are accessible from the front. Name plate, side panels, and lower section of front panel are easily removed.
Designed and constructed to meet stringent safety and sanitation requirements and to receive UL, CSA, and NSF approval.
Two. Over 20-qt capacity each.
208-230 volts, 3 phase, 60 hertz, R502 freon
Approx. size: 26" w, 30" d, 61 1/2" h
