Pneumatic air rota-cyl cylinder deltrol AC2 OX180
The Rota-Cyl is used throughout the industrial world, wherever there is a requirement for constant-torque, controllable rotary motion. In addition to offering new advantages for applications traditionally using less advanced actuator designs, the Rota-Cyl's extremely compact size and safety features permit its utilization in applications heretofore unable to use either air or hydraulic power.
The Rota-Cyl is of a fully-sealed design. No precision parts are exposed; corrosive atmospheres have no effect on internal functions. Speed is easily controlled. Simple throttling devises (such as Pneu-Trol flow control or needle valves) provide precise acceleration and speed control. And Rota-Cyls operate effectively at high temperatures - standard models function perfectly at 220 F.; other types available for higher temperatures.
Other RotaCyl features include:
* High Safety Factor. No levers, rack gears, or other external moving parts.
* Units can be funished to operate on any type of hydraulic fluid, water, or air.
* Self-Centering Pistions. AC and AD Series mounted on endless chain - no piston-rod seals or packing to wear out.
* Wide range of Sizes. Standard Rota-Cyl sizes 1.0" to 8.0"
* Cushions. All Series AC/AD Rota-Cyls can be furnished with adjustable cushions on one or both ends of travel.
* Wide Range of Torque Ratings from 24 to 11,000 inch-pounds for standard models (15,000 inch-pounds at maximum pressure).
* No Fire Hazard. Rota-Cyl is rigidly mounted so it can be connected with rigid piping, eliminating flexible hydraulic hoses and removing potential sources of hydraulic leaks.
* Explosion-Proof. No electrical components required in the immediate area of the Rota-Cyl.

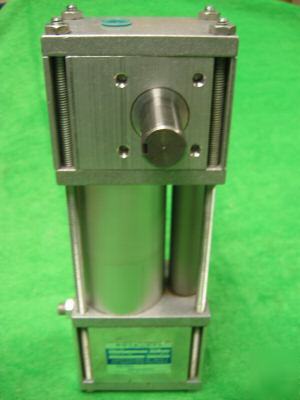

This is for one new Rota-Cyl model A02 OX180 out of box. This has never been used or installed. Overall size dimensions are 10 1/4" overall height with studs and the body only of 9 11/16ths, 3 1/2" of basic body depth with a adjusting screw protruding on one side making a total of 4" overall, with the two 3/4" diameter shafts with key way with one on each side that are about 1 3/8" long for a total overall dimension of 5 1/4". Torque is 180 @ 100 P.S.I . US Made. Has a port plug on both top and bottom. The adjusting screw is typically used after 50,000 operating cycles to remove backlash.
