New c-h rack mount multifunction timer w/preset lcd -

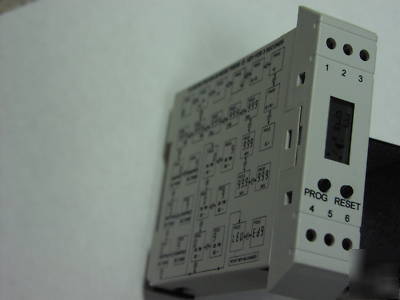

YOU ARE PURCHASING A CUTLER-HAMMER DIN-RAIL MOUNTED MULTIFUNCTION TIME RELAY, BATTERY OPERATED, WITH A SINGLE PRESET WITH THE FOLLOWING SPECIFICATIONS:
(A) 1-999, 0.2-99.9, 0.2-9.99 sec.
(B) 1-999, 0.1-99.9, 0.01-9.99 min.
(C) 1-999, 0.1-99.9, 0.01-9.99 hrs.
(4) DISPLAY: 3 DIGIT LCD .256" (6.5mm),
ALSO MODE AND RELAY ANNUNCIATORS
2 EACH 3 VOLT LITHIUM BATTERIES, 10
YEAR EXPECTED LIFE OR 1 MILLION
RELAY OPERATIONS.(REPLACEABLE BY
QUALIFIED PC BOARD TECHNICIAN).
(3) TIMING INPUT: 12 TO 260 VOLT AC OR
DC OPTO-ISOLATED INPUT. SELECTABLE
SINK (NPN) OR SOURCE (PNP) IF USING A
DC INPUT DEVICE. INPUT IMPEDANCE IS
(A) CONTACTS: SPDT VOLTAGE FREE
(B) CONTACT RATING: 10A 380 VAC OR
(C) POWER RATING: 2000VA/150 WATT
(D) REACTION TIME: LESS THAN 20 ms.
100,000 OPERATIONS @ 8A RESISTIVE
1,000,000 OPERATIONS @ 2A RESISTIVE
(5) REPEAT ACCURACY: +/- 0.3% SET TIME
+50ms, +/-20ms, OR +/-0.5% OF SET TIME
(7) OPERATING TEMPERATURE: 14 DEG F TO
(8) STORAGE TEMP: -4F TO 140F(-20C TO
(A) LEVEL TRIGGERED - AN INPUT IS VALIDATED BY A VOLTAGE BEING PRESENT.
(B) EDGE TRIGGERED - SUBSEQUENT PULSES ON THE TIMING INPUT CAN START A NEW TIMING CYCLE.
