Mastech multimeter lux humidity sound level db meter

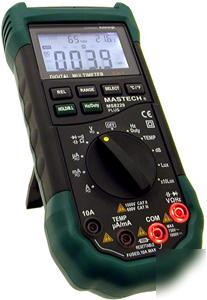

The newly released Mastech MS8229 DMM is an improved and modified version of Mastech MS8209, it combines a multimeter, a sound level meter, thermometer, luxmeter, humidity meter all in one. Also it is packed with many nice features such as temperature & humidity display, sound and light warning for the jacks and back-lit LCD Screen, please refer to the detailed specs and features below.
Press range button to select manual or auto ranging
Built-in Temperature & Humidity Sensor
When the meter is on, it will automatically show you what the temperature and humidity is on the LCD display (please refer to the photos above)
LED / Sound Warning when incorrect banana jacks are used relative to function switch setting (volt, amp, resistance), Red LEDs light up telling you which two jacks to be plugged in when you swtich among functions.
Back stand and test leads holders
DCV: 400m/4/40/400/1000V, +/- 0.7%
ACV: 400m/4/40/400 +/- 0.8% 750V, +/- 1.0%
DCA: 400 /4m/40m/400m +/- 1.2% 4/10A, +/- 2.0%
ACA: 400 /4m/40m/400m +/- 1.5 % 4/10A, +/- 3.0%
Resistance: 400/4K/40K/400K/4M +/- 1.2% 40M, +/- 2.0%
Capacitance: 40n/400n/4m/40m/100mF 3.0%
Frequency: 10/100/1K/10K/100KHz/200KHz 2.0%, >200KHz,reference only
Temperature: -20 - 1000 degrees C (0 1,800 degrees F ) +/- 3.0% (C/F selectable)
Lux: 4,000/40,000 Lux, +/- 5.0%
Sount dB: 40 100dB, +/- 3.5% @ 94dB
Continuity tester: Buzzer if resistance is less than 40 ohms
Duty cycle: 0.1%-99.9% 3.0%
Dimensions and Weight: 195 x 92 x 55mm, 400g
