> Jm canty hyl-80 HYL80 process light system 120V complet
Jm canty hyl-80 HYL80 process light system 120V complet

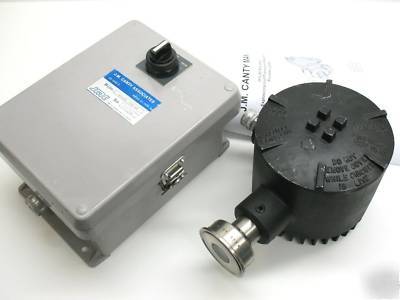

ITEM: JM CANTY HYL-80 Industrial Light System, COMPLETE, Includes Manual.
LIGHT SOURCE: Model HYL80 LS-WP w/ 80 Watt Lamp, Weatherproof Aluminum Housing w/ Cooling Fins
LIGHT PIPE: Model LPC-S2F00 w/ Fused Soda Glass and 316L Stainless Steel 2" Tri-Clamp Mounting Connection, Max 150 PSI @ 200 F
POWER SUPPLY: WeatherProof enclosure w/ External HIGH/OFF/LOW light intensity selector switch and Adjustable Timer Relay, 120V Supply.
CONDITION: Surplus Used, w/ minor scratches on housings, WORKING CONDITION BENCH TESTED OK, includes JM Canty Manual.
SOURCE: From the carefully decomissioned facility of a major pharmaceutical manufacturer, surplus to their ongoing operations.
WHAT THE MANUFACTURER SAYS ABOUT THEIR CURRENT PRODUCT:

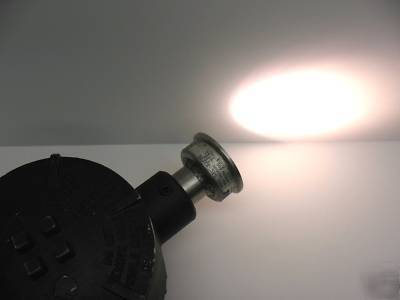

"The HYL 50 and HYL 80 lights are designed to illuminate pressurized, irradiated or isolated areas. The HYL lighting package provides a compact, cost effective lighting system. Our patented design allows for an intense beam of light to cross the pressure/ process boundary. Once across, the beam can be diffused to produce conical light outputs of 30 (normal beam) or 90 (wide beam).
Our patented design consists of three main components: light source, light pipe and power supply. An infra red filter is used to remove heat from the light, providing only cool, effective light into the process. A high output, low voltage bulb and reflector deliver the maximum amount of light into the vessel. Light is guided fiber-optically through the light pipe into the process or pressure area. All Canty light pipes feature our high pressure, high temperature fused glass seal for maximum safety.
Process Vessels and Equipment
Diving Decompression Chambers
Altitude and Environmental Chambers
JM Canty HYL Industrial Lights catalog webpage
SOLD ELSEWHERE FOR APPROX.: $1,700 New (Approx. $600 for Light Source, $600 for Power Controller, $500 for Light Pipe)
