Infrared sensor circuit board for body activated light

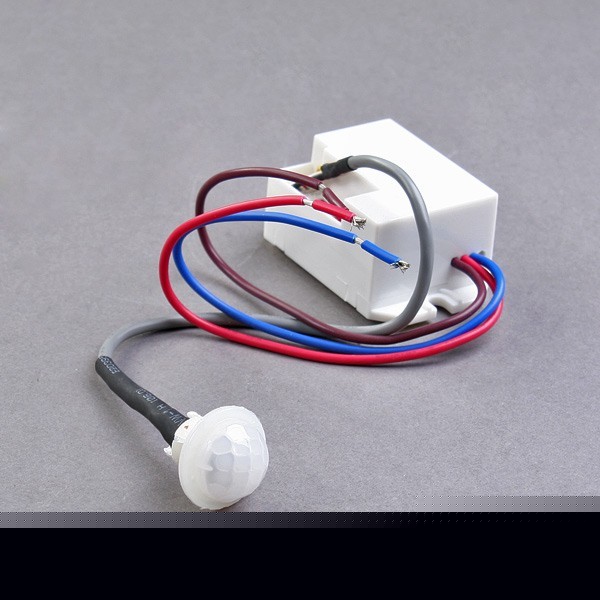

Infrared Sensor Circuit Board for Body Activated Light
* Turns on lights when you ve got your hands full
* Saves costs in communal housing
* No more forgetting to turn the lights off and increasing electricity bills
* Ideal for protecting your home and property
* Uses an infrared detector, IC and SMD technology to automatically trigger lights
* Selectable time delay: 5 or 30 seconds, 3, 5 or 8 minutes
Sensor is activated by your body and lights your way for up to 350 seconds after it has been triggered
* Stair wells and hall ways especially in communal housing
Handy if you have family or tenants who forget to turn off lights - a much more economical solution to leaving regular lights on 24/7
* Power supply: 180V - 240VAC, 110 - 130VAC
* Rated load: 800W (180 - 240VAC), 500W (110 - 130VAC)
* Time delay: 5 or 30 seconds, 1, 3, 5 or 8 minutes (adjustable)
* Working temperature: -10 C - 40 C
* Working light (night) <10 LUX
* Dimensions: 56 x 34 x 24mm
Grab yourself a little bit of convenience and save on future electricity costs with the infrared motion activated sensor
