12" dia. 20HP supertec stc-20-cii centerless grinder,
12" Dia. 20HP Supertec STC-20-CII CENTERLESS GRINDER,
12" Dia. 20HP Motor Supertec STC-20-CII CENTERLESS GRINDER, Mitsubishi PLC menu-driven LCD touch scr

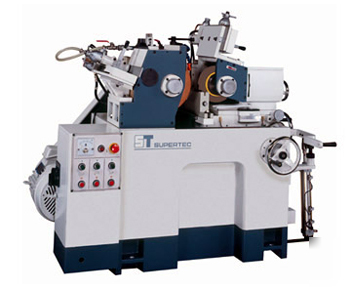

"NEW" SUPERTEC STC-20-CII CENTERLESS GRINDER
w/Single Axis Automatic Controlled Regulating Wheel
The CII model utilizes a Mitsubishi PLC menu-driven LCD touch screen
control that is easy operate, along with a servo motor for the regulating
wheel. Simply fill in the blanks to set total grind amount, rough grind
amount, fine grind amount, dwell times, and retracting clearance, then
press cycle start to complete the automatic grinding cycle.
Work diameter (with special workrest): 2 ~4
Dressing increment per revolution: 0.0625"
- Grinding wheel (20" x 8" x 12", 38A)
- Regulating wheel (20" x 8" x 5", A)
- Thrufeed workrest (0.04" - 2")
- Special thrufeed workrest (2" - 4")
- Special infeed workrest ( 2" - 4")
- Input rail & output rail (L: 8"/ea)
- Long thrufeed guides (6ft/ea) w/stands
