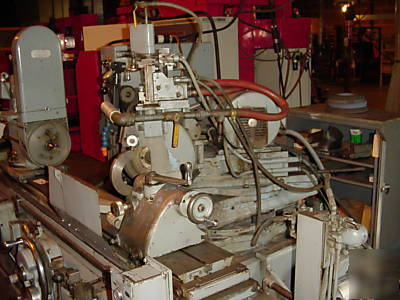

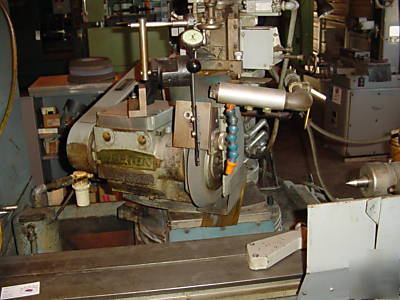

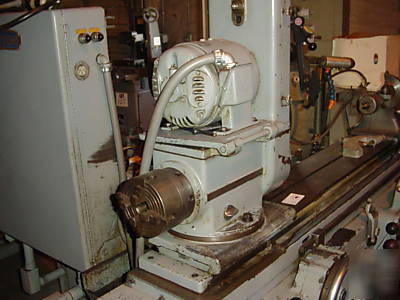

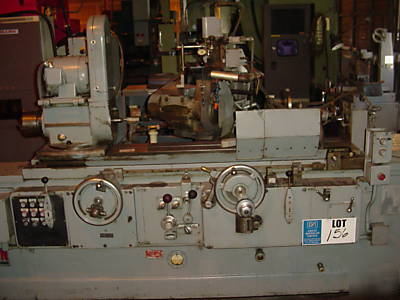

Norton U4 12" x 36" universal grinder
Type: Grinders, Cylindrical, Universal

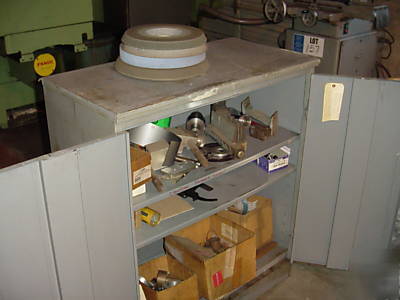

With miscellaneous tooling and operating manual
MAXIMUM DISTANCE BETWEEN CENTERS: 36
MAXIMUM SIZE OF GRINDING WHEEL: 14 x 1 x 5 HOLE
WHEEL HEAD SWIVELS: 90 DEGREES
WORK HEAD SWIVELS: 360 DEGREES
TAPER IN WORK HEAD: NO. 12 JARNO
TAPER IN TAILSTOCK: NO. 9 JARNO
HYDRAULIC TABLE SPEEDS, INFINITE: 2 TO 240 IPM
SWIVEL TABLE ADJUSTMENT: 3 PER FOOT (MAX)
WHEEL HEAD MOVEMENT PER TURN OF HANDWHEEL: .005
HEAD STOCK CENTER DIAMETER: 1-1/8
APPROXIMATE MACHINE WEIGHT: 7,000 LBS
APPROXIMATE MACHINE DIMENSIONS: 124 R-L x 71 F-B x 70 HIGH
AUTOMATIC INFEED 2 HP 220/440/3/60 MOTOR
SELF CONTAINED HYDRAULIC SYSTEM
Please contact us for a freight quote. Item may be picked up and loaded at our Phoenix location at no charge. Local delivery is available.You are welcome and encouraged to check out this machine under power at our Phoenix facility. Please contact us for an appointment.
