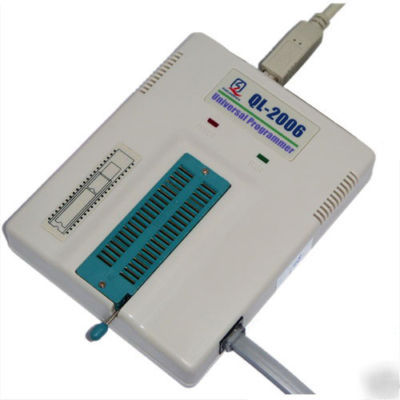

QL2006 usb&RS232 pic programmer for microchi+16F877A
QL-2006 programmer is the high-speed programmer designed specially for development and production programming of PIC single chip microcomputer (SCM) by QLS Electronic Technology Co., Ltd. The product is featured with small volume, low power consumption, high reliability as well as easy and convenient operation.
QL-2006 is applicable for almost all PIC10/12/16/18 series SCMs except 16C5X. It also supports memories in 24XX series and 93XX series.
Features of QL-2006 Programmer:
3.Through built-in ICSP interface (completely compatible with ICD interface of MICROCHIP), support ICSP (in-circuit serial programming) directly without any additional device. User may program after circuit board is welded. For FLASH SCM, online upgrade is available.
5.Compatible with operating systems (OS) including Windows98, Windows2000/NT and Windows XP.
There is no special requirement for installation of this programmer.
Connect programmer to PC through serial port cable or USB cable and power up, then the programmer works. (This programmer supports direct USB power supply. If USB cable is connected, you may not connect external power. However, if current through USB interface is very low less than 200MA and insufficient to drive programmer, connection to external power is required to enable the programmer to work regularly.)
MICROCHIP serial EEPROM series:
4: CD ROM(QL-PROG soft; USB Driver; MPLAB IDE; English versions of user manuals..)
