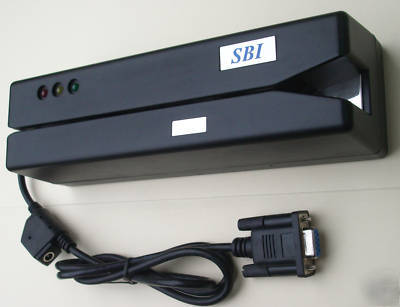

Magnetic card reader writer encoder sbi 206 hico & loco
*** FREE USB-SERIAL adapter with cable for notebook computer, with purchase ***
Windows Vista Ready ! ( Also run on all XP, 2000, 98, 95 even a DOS version )
Seller will offer direct 90-day main-in USA-domestic FREE LABOR & PARTS WARRANTY !
Batch reading & writing cards !
Note: This model writes Hi-Co cards at 2750 OE; Lo-Co at 300 OE; as all bank cards use this standard, if you write Hi-Co at 4000 OE, many readers may occur read error, and reject it.
-This model has same read/write/erase function as our $299 MSRW206 which uses hardware decoding motherboard,
-This model uses low cost software decoding motherboard with new multifunction firmware, and can run many MSR206 software on the market like mini123sc/exeb/TA32...
-This model can use COPY/PASTE function under Windows, so no need to enter track data manually.
1). Same Day Money Transfer Service at all banks.
* Using software decoding SMT motherboard to reduce cost at similar function
* Can run many MSR-206 commercial software on the market
Seller's 90-day mail-in warranty, seller will repair/exchange within 7 days after received your warranty service item.
Complies with ISO 7811/1-6 formats
Read/write cards with PC standard RS232 interface
Read/Write high and low coercive (300~2750 oe)
12V/1.5A External power adapter;**
DOS, Windows 95/98/Me/2000/NT/XP/VISTA
High/Low coercivity switching by a hardware Panasonic Relay
Leading bit, raw data, DMV/AAMVA and user-defined format
90-day seller's warranty, return to seller for exchange/repair.
This reader/writer is designed to offer a card reading/writing solution
for ISO & non-ISO raw formats. It reads and writes up to 3 tracks of
data, decoding/encoding and verifying up to 3 tracks of data
simultaneously, it provides a standard 9-pin female RS-232 /USB
interface to communicate with host system or other terminal computers.
Coercive force Read : 300 - 4000 Oe Mag. Card
Coercive force Write: : 300 - 2750 Oe Mag. Card
Read speed Standard card: 5 - 85 ips
Jitter card ( 15%): 5 - 50 ips
Low amplitude (60%): 5 - 50 ips
Head life Min. 500,000 swipes for both read and write heads
Operating voltage +12VDC up to 24VDC 5% , standard power adapter : 12VDC.
Consumption Typical 150mA Reading/ 1000mA max for each writing track
Power supply External power adapter 12V/5.0A
Swipe Manual, single direction
Operating system DOS & Windows 95/98/Me/2000/NT/XP
Cable 5 feet, USB or DB9 connector with power jack
Pin assignment (RS232) Pin 1 Shield
Pin 2 TXD (MSR206 data transmit)
Pin 3 RXD (MSR206 data receive)
(RS232) 9600 baud, 8 bit/character, no parity, 1 stop bit
1. SBI-206 Track 123 Hi-Co / Lo-Co Reader / Writer
3. Power Adapter 12V/1.5A with power cord
4. USB to Serial Adapter with cable and software driver for Windows 98/2K/XP
ALL SALES FINAL; NO RETURN; NO REFUND; 90-DAY FREE LABOR & PARTS MAIL-IN WARRANTY. EXCHANGE ONLY.
