Fci E3 or 7100 nga touch screen display

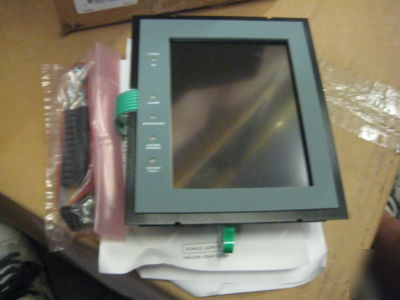

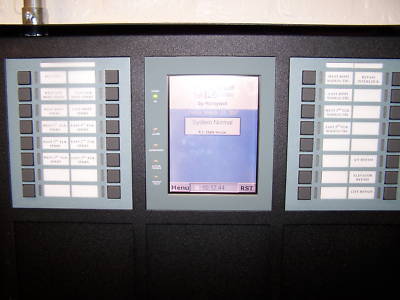

i have an nga never installed out of box with no paperwork nga in pic is the same but not actual no scratches or damageDescription NGA Network Graphic AnnunciatorThe NGA LCD Graphic Annunciator is a powerful, yetattractive component of the Gamewell-FCI emergencyvoice evacuation systems. The bright, back-lit VGAdisplay is supplemented with an intuitive, easy-to-usetouch-screen interface that provides the following features: Up to 512 user-defined messages may be configured. Messages may be up to 77 characters in length. Display font and color may be selected for eachmessage.The NGA mounts in NetSOLO and E3 Series enclosuresor it can be remotely located. It occupies one (1), standardslot in the cabinet and directly connects to the INI-VGC orRPT-E3 eliminating the need for a separate ARCNET interface.The NGA occupies one node on the Broadband network.The back-lit LCD display indicates events stored in the systemevent log, the status of analog addressable monitorand control points and provides diagnostic fault codes/messages.The attractive, state-of-the-art display is user-friendly,easy-to-read and affords the end-user with the means toperform numerous functions via the touch-screen featurewhich is software programmable. Some switch functionsare: Acknowledge, Signal Silence, Reset, Log Events, andsystem maintenance functions.Additional LEDs located on the display panel perimeterindicate Power On, Alarm, System Trouble, Supervisoryand Ground Fault conditions.SpecificationsOperating Voltage: 24 VDC from the PM-9/PM-9Gpower supplyOperating Current: 0.200 amp*Alarm Current: 0.200 ampOperating Temperature: 32 to 120 F (0 to 49 C)Relative Humidity: 0-93% non-condensing at 90 F(32 C)*Normal operating current. During power failure, currentdrops to 0.045 amp, since the back light is extinguished.E3 Series and NetSOLO are registered trademarks of Honeywell International Inc.UL is a registered trademark of Underwriters Laboratories Inc.Features Listed under UL Standard 864, 9th Edition 1/4 VGA display multipurpose touchscreen providesthe following options:- Up to 512 user-defined messages may be configured.- Messages can be up to 77 characters in length- Display font and color may be selected for eachmessage Software programmable touch-screen interface. Mounts in NetSOLO and E3 Series command centermounting spaces or enclosures 625K baud ARCNET communications User-friendly design RS-232 interfaceOrdering InformationPart Number Description1100-0505 Network graphic annunciator
