Agilent model 1146A oscilloscope current probe

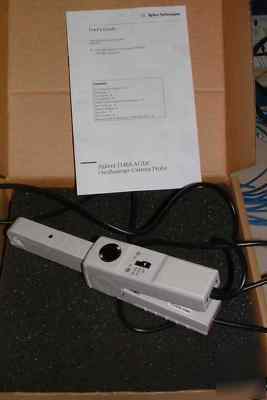

We got this at the closed electronics assembly plant. It is in the original carton, includes the manual, and doesn t look like it was ever used (until I tested it)! It is spec'd to measure currents from 50 ma to 100 amps AC or DC using a clamp on Hall effect sensor. A switch on the unit provides an output of 100 mv/A for currents up to 10 amps and 10 mv/A for use from 10 - 100 Amps. It can also, of course, be used with a voltmeter. I tested it using first a 60-watt light bulb and then substituting a 23-watt CFL. The resultant scope display is very informative and leads me to believe that the shift to CFL's is going to damage the power system. List price is $729.
