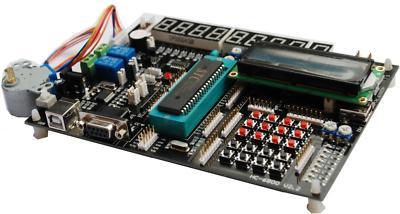

8051 mcu development board studying kit&stepper motor
Aluminium-magnesium Alloy Box for this Board
(2)8P Dupond thread +$0.8/piece
(4)Remote controller +$4.1/piece
Demo board for 8051 Microcontroller with the highest cost performance.This is an integrated demo system for the studying and development of the 8051 Microcontroller, able to satisfy both the Beginners and further development.
Size of the gift box: 20*15*6 CM
With big size and elegant layout, makes your operation more easily and provide you a visual enjoyment.
It looks luxurious and noble, you will love it at first sight.
For beginners Keil C51 is the best choice, it's free as long as your program below 2KB,our CDs will provide the version you need.
AVR mega 16/32 ( need an extra converter )
Providing 2 kinds of downloading programs
Super powerful settings of circuits resources
(1) Equipped with STC89C2 chip, download with USB cable and do not need an extra programmer or recorder;
(4) 8 digit LED: They could experiment and simulate various calculators and digital indication, including simulating single chip machines as LED-clock etc;
(5) 4*3 matrix keyboard for program developing needs;
(6) Buzzer voice: could finish sound type experiment like music playing and alarming;
(7) Infrared receiving and connector;
(8) USB port communication circuit;
(9) ISP downloading head, support to download program from host PC to board;
(10) A24C02(EPROM with 2kb space;
(11) Temperature transistor DS18B20 connector, include DS18B20;
(12) Industrial grade A/D and D/A converter;
(13) Real Time Clock DS1302 with battery supply;
(14) 1602-character LCD internal 5*7 lattices, to display 16*2-character;
(16) 8 seven-segment digits in multiplex mode;
(17) 1 output lines with relays;
(20) USB connector for MCU with USB facilities;
(21) PS2 connector makes possible direct connection between MCU and PC keyboard;
STC89C52 Studies and Development Board
CD(Keil C51,with some sample code(C/ASM))
