42" blanchard vert-spindle rotary surface grinder 23621

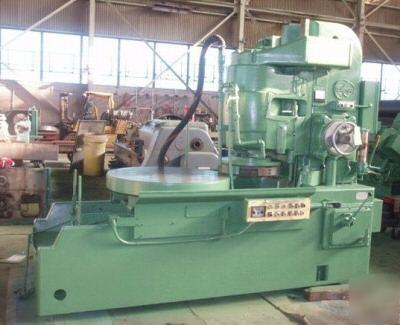

42" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
New 1968, Serial No 12353, Model 22D42
42" Diameter Magnetic Chuck w/Variable Neutrofier
50 HP Spindle Motor (Optional)
Magnetic Chuck, Diameter............... 42"
Swing Between Coolant-Guards........... 48"
Grinding Vertical Range, Maximum....... 18"
Grinding Wheel Speed................... 720 RPM
Spindle Motor, Horsepower.............. 50 HP
Chuck Rotation Motor................... 3 HP
Overall Dimensions, L x W.............. 11'8" x 7'
Overall Height......................... 10'1"
Weight, Approximately.................. 14500 LBS
REPLACEMENT PRICE: Is Approximately... $230,000.00
