PHD AIR CANTILEVER SLIDE & CYLINDER 1 1/2" STROKE

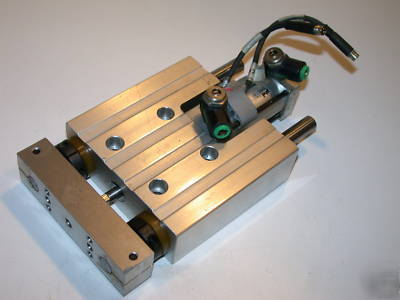

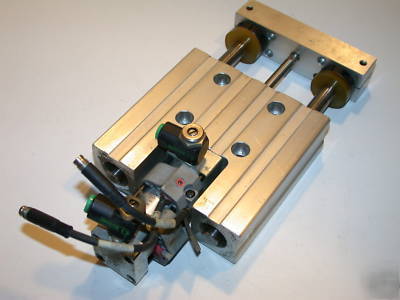

This is a Pneumatic PHD Cantilever Air Slide and Cylinder, Model SEB23 X 1 1/2-AR-E.
This slide has 1 1/2 Inches of Stroke, the 2 guide pins measures 1/2 " diameter and piston measures 5/16".
Four bushings allow two hardened precision ground shafts to move smoothly while supporting the tool plate and attached loads, providing rugged precise linear motion.
SE version has a greater distance between bushings for longer slide travels and greater shaft stability.
TC bushings are supplied with internal lubrication for maximum life.
Shaft seals are provided on units with linear ball bushings to protect them from external contamination.
Linear ball bushings provide optimum tool plate accuracy.
Adjustable Cushions on extension and retraction
Includes Air ports and end of stroke sensors shown
Anodized aluminum alloy tool plates have combination tapped and counterbored holes and a precisely machined mounting surface, permitting easy attachment of fixturing.
http://litstore.phdinc.com/pdf.asp?filename=SDSE.pdf
