Fonsan DFB0412H 12V 40X20MM fan

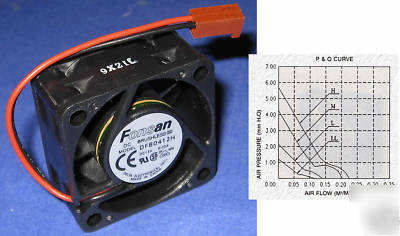

This is a used surplus 12V fan, 40mm square x 20mm thick. It is Fonsan PN DFB0412H. A datasheet, including airflow curve, is available at http:// /mas_assets/acrobat/ES2911.pdf. These fans are fitted with a 2-position mini-Molex connector as shown; it has 0.1 pin spacing and would plug into a receptacle with .025 square pins. The fan curve is also shown in the photo.
Operating voltage: 12vdc nominal; 7.0 13.8vdc range
Airflow: .23 m3/min, 8.1 cfm
Max air pressure: 5.72 mm H2O, .225 in H2O
THIS FAN IS GUARANTEED TO BE GOOD. If you find that it doesn t perform as specified, let me know in 30 days or so, and I will provide a refund.
