Automation direct H2-ctrio 205 high speed counter ~many

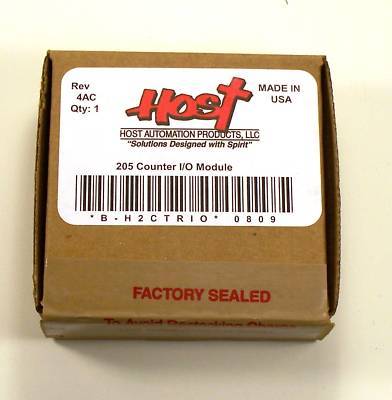

Automation Direct H2-CTRIO 205 HIGH SPEED COUNTER Factory Sealed, remanufactured by Automation Direct, money back guarantee
H2-CTRIO (205 HIGH SPEED COUNTER INTERFACE MODULE)
High Speed Counter Interface Module, 8 DC sink/source inputs 9-30 VDC, 4 isolated sink/source DC outputs, 5-30 VDC, 1A per point. Inputs supported: 2 quadrature encoder counters up to 100kHz, or 4 single-channel counters up to 100kHz, and 4 high-speed discrete inputs for Reset, Inhibit, or Capture. Outputs supported: 4 independently configurable high-speed discrete outputs or 2 channels pulse output control, 20Hz-25kHz per channel, pulse and direction or cw/ccw pulses.
