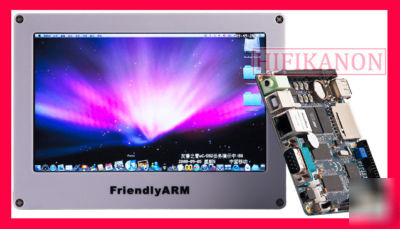

Arm S3C2440 developing board 7" linux windows ce SKU06
MINI2440 S3C2440 ARM9 Development Board TouchScreen LCD
Up for sale is 1 set Arm S3C2440 Developing board with 7" TFT Touch Screen. The board is Preloaded with Win CE version
The MINI2440 is an effecient ARM9 development board with a comprehensive price, it characterizes simple method and high performance-price ratio. Based on the Samsung S3C2440 microprocessor, it embodies professional stable CPU core power source chip and reset chip to ensure the stability of the system operation. The PCB on the MINI2440 board is designed to be 4-layers board, adopting the ENIG technology and professional equal-length wiring to ensure the completeness of the signals of the key signal wires; and manufactured and released under stringent quality control plans. With the help of this detailed manual, users are supposed to become proficient in the development process of embedded Linux and WinCE operating system, they are supposed to get the foundation, so long as they have obtained the basic and necessary knowledge about the C language, in two weeks.
Samsung S3C2440(ARM920T core with MMC, Up to 532MHz)
64Mbyte Nand Flash + 2M Nor Flash(BIOS installed)
Supports 3 types of LCD panels: 4-bit dual scan, 4-bit single scan, and 8-bit single scan display type
Supports the monochrome, 4 gray levels, and 16 gray levels
Supports 256 colors and 4096 colors for color STN LCD panel
Supports multiple screen size
Typical actual screen size:640 x 480, 320 x 240, 160 x 160, and others
Supports 1, 2, 4 or 8-bpp (bit per pixel) palletized color displays for TFT
Supports 16, 24-bpp non-palletized true-color displays for color TFT
Supports maximum 16M color TFT at 24bit per pixel mode
Supports multiple screen size
Typical actual screen size: 1024x768 640 x 480, 320 x 240, 160 x 160, and others
1 10M Ethernet interface (RJ-45 interface)
All CEMERA signal pin out (Optional Camera avail.)
1 RS232 serial port, 3 serial ports available through 14pin (2.0mm space) interface
34pin GPIO expansion connector
40 pin System bus expansion connector
BIOS( Do not provide source code)
System Interrupt & Timer Driver
10Base-T external Ethernet device driver
LCD/Frame Buffer(support 1024*768,800*600,800*480, 640*480,240*320,320*240TFT)
Network protocol and application
File transfer (FTP client / server)
System update and Software download
Local console through RS232 and remote telnet configuration and management(Sample Only)
cat, chmod, discard, echo, flashfsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes,insmod, lsmod, rmmod
Driver for external USB device
Add USB downloading function in vivi, supporting downloading/ updating image with USB
Support USB keyboard and USB mouse
MINI2440 S3C2440 ARM9 Development Board (Preload with Linux)
One DVD-ROM with English User Manual , Schematics, Demo code, Source code & Data Sheets
