Angle plate toolmaker machinist hardened ground #10/32

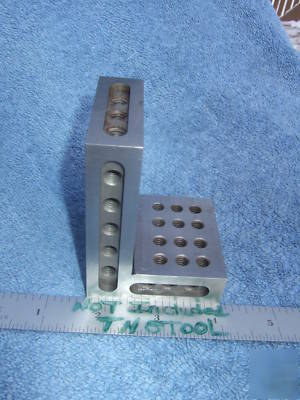

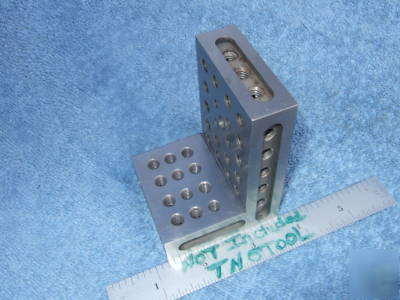

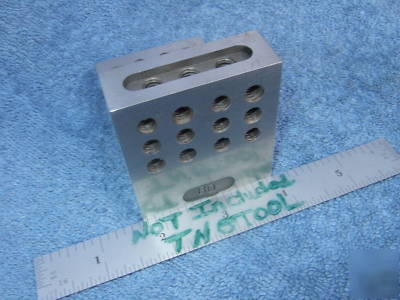

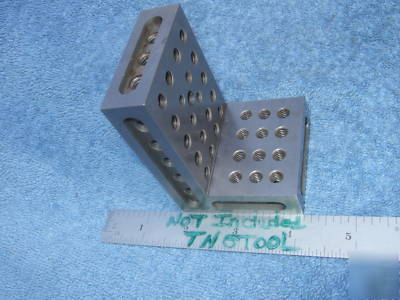

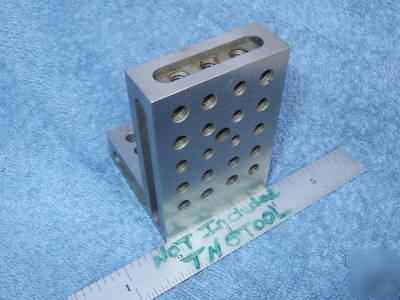

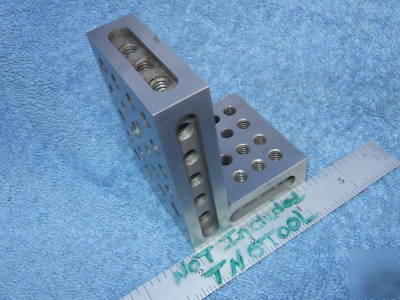

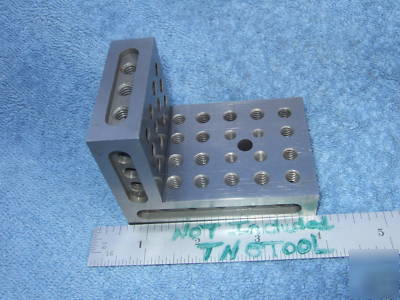

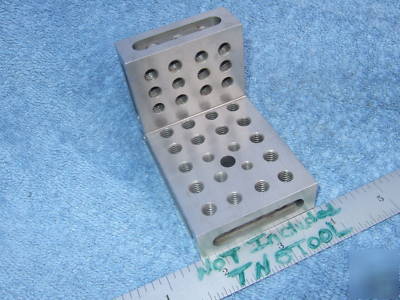

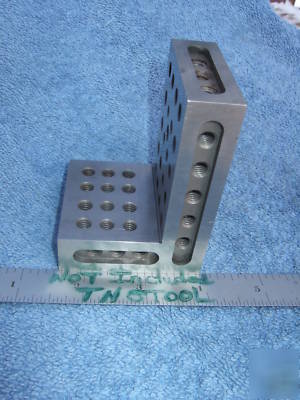

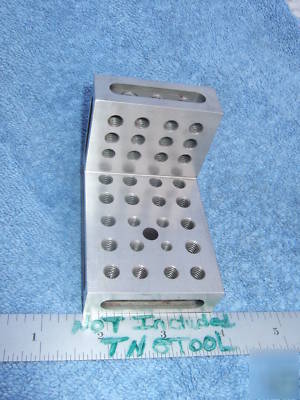

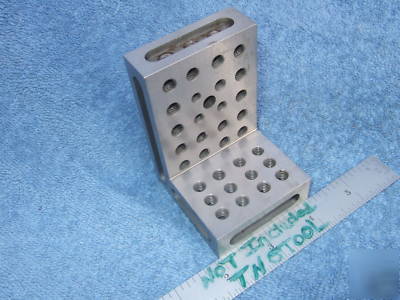

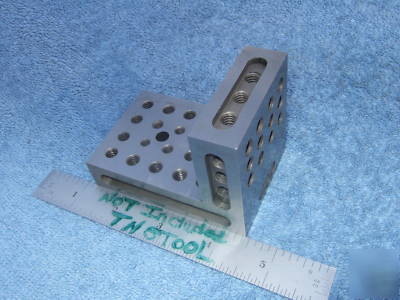

ANGLE PLATE (1) 2-5/32" WIDE X 2-3/8" LEG X 3-1/4" TALL!!!! MADE OF HARDENED AND PRECISION GROUND TOOL STEEL USED BY WATCHMAKERS, MACHINIST AND TOOLMAKERS ALIKE. PLATE IS IN EXCELLENT GROUND USED CONDITION AS SHOWN IN 12 SUPER-SIZE PICTURES.
PLEASE TAKE A MINUTE TO LOOK AND OR ZOOM PICTURES ALL 12 WORK!!!!! ALL SIDES AND ENDS ARE SHOWN. NOT 1 OR 2 SMALL FUZZY PICTURES HERE!
PRECISION GROUND ANGLE PLATE . ANGLE PLATE HAS (50 ) 1/4" X 20 HOLES AND (4) # 10 X 32 TAPPED HOLES AS SHOWN. CENTER HOLE IS REAMED AND IS 17/64". ORIGINALLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK AND A BALL-WAY SURFACE GRINDER WOW IT IS NICE!!!!!
MEADVILLE PA. TOOLMAKER MADE IT FROM HARDENED TOOL STEEL. I HAVE MANY TOOLS TO LIST FROM THIS XCELLENT XCELLENT TOOLMAKER,CHECK BACK OFTEN AND SEE OUR STORE!
