Smc linear 3" rodless air slide cylinder ECDBX2N15-75

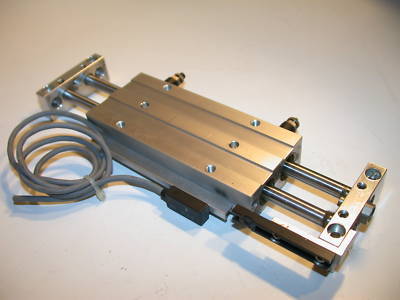

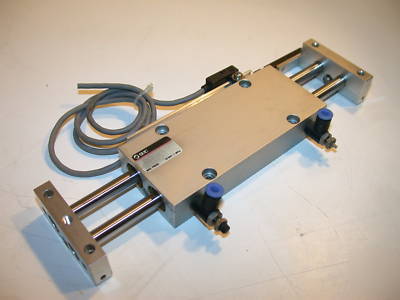

SMC LINEAR 3" RODLESS AIR SLIDE CYLINDER ECDBX2N15-75
Slide measures 2" wide x 4 3/4" long and the assembly measures 8 1/2" overall.
NCX2 slide units offer highly accurate positioning and smooth operation with large forces. Its compact design and low profile accommodate minimum space requirements to meet many design applications. Through-holes in the housing provide for direct load mounting or fixed positioning of the body. Auto-switches are mounted to the rail.
The slide unit can absorb energy in a wide range, in high speed, low-load applications to low speed, high-load applications, without requiring adjustments.
A high level of positional accuracy can be attained because the two parallel piston rods prevent the rods from rotating, and the workpiece mounting surface and the parallelism of the piston rods are made highly precise.
http://content.smcetech.com/pdf/ncx2.pdf
http:// /CC_catalogs/smc/pdf/cxw.pdf
http:// /displayitem.php?keyword=NCDBX2N15-400BCS-F7PL
