New MS5209 earth resistance tester 10/100/1000ω 30V ac

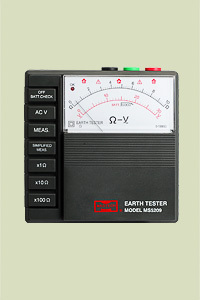

MS5209 EARTH RESISTANCE TESTER
Measuring ranges Earth resistance 10/100/1000
Earth voltage 30V AC (5k /V approx.)
Accuracy Earth resistance within 5% of full scale
Earth voltage within 5% of full scale
Measurement system Earth resistance by constant current inverter 800Hz approx. 2mA
Earth voltage by rectifier type 5k /V approx. 40 ~ 500Hz
Withstand voltage 1500V AC for one minute between electrical circuit and housing case
Self-check facility Lead wire connection to C and P terminals and proper auxiliary
Earth resistance can be checked by pressing BATT.CHECK button. OK lamp is illuminated
Test leads (red-15m,yellow-10m,green-5m)
Auxiliary earth bars carrying case.
