Grind cube clamps machinist/toolmaker, hardened #10X32

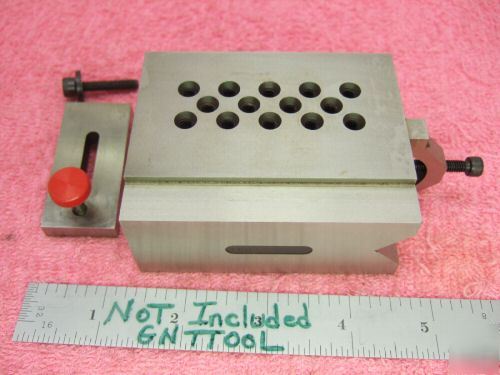

TOOLMAKERS GRINDING CUBE WITH VEE AND CLAMPS, (1 CUBE ONLY) MANY MORE IN STORE!!!! PRECISION GROUND WITH 2 CLAMPS AS SHOWN ONE FOR VEE AND ONE FOR GRIND SLOT TO MAKE BLADES OR ELECTRODES. THIS IS A TOOLMAKER MADE COPY OF A WELL KNOW FIXTURE MADE FROM STEEL. BOTTOM IS SOLID SO IT REALLY STICKS TO YOUR MAGNETIC CHUCK. BLOCK WAS GROUND USING A HERMANN SCHMIDT SQUARING BLOCK AND A HERMANN SCHMIDT MAGNA-SINE ON A BALLWAY SURFACE GRINDER BY PA TOOLMAKER. THIS IS AN EXCELLENT USED TOOL!
BLOCK MEASURES 1.504" WIDE WITH LENGTH OF 3.252" AND 2.480" TALL. BLOCK HAS (20) TAPPED HOLES #10" X 32 AND (1 VEE CLAMP 1 SLOT CLAMP) WITH (6) TAPPED HOLES TO HOLD VEE CLAMP THAT ARE FOR #5 OR #6 SCREWS .110" DIAMETER AS SHOWN GREAT FOR BLADE GRINDING OR ELECTRODE MANUFACTURING. ALL EDGES PRECISION CHAMFERED AS SHOWN AND IN MINT CONDITION SWEET SWEET TOOL!!! VEE IS 3/4" WIDE AND STEPS ARE .100" X .900" AND .100" X .496" , EXCELLENT FOR BLADE OR ELECTRODE MANUFACTURING. BLOCK WAS STORED IN A GERSTNER BOX AND BASE SOON TO BE LISTED. SEE PICS.
U. S. A. THE BEST IS HERE! SEE PICS.
