Sony bm-246 analog transcriber confer-corder

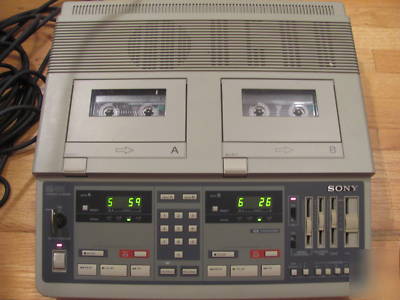

* DUAL CASSETTE OPERATION accommodates two individual cassettes and permits single-deck or automatic changeover operation (one deck records while the other plays back)
* 2-SPEED OPERATION for recording time up to 6 hours without interruption
* 4-TRACK, 4-CHANNEL RECORDING permits monitoring of individual voices or playback of independent conversations
* INDEPENDENT RECORD SIGNAL INDICATORS display recording activity; Two-button Stop prevents accidental interruption of recording
* STANDARD CASSETTE SYSTEM uses easy to obtain compact cassettes for recording and playback convenience
* AUTOMATIC RETURN TO RECORD-END provides a quick repositioning of the tape to end of last recorded portion, for continued recording
* KEY-LOCK SECURITY with two-position on/off operation allows for security of recorded cassettes
* VARIABLE SPEED PLAYBACK provides for slower than normal or faster than normal playback for transcribing convenience
* 3-FUNCTION FOOT CONTROL is available, to let the transcriber change mode from Play to Rewind to Fast-Forward without removing hands from the keyboard
* 5-DIGIT LED COUNTERS have battery back-up, and are independent to permit control and monitoring of each deck separately
* EASY SEARCH FUNCTION quickly locates particular tape segments automatically
* BUILT-IN SPEAKER atop the unit for playback
* SPEED/TONE/VOLUME CONTROLS are individual slider-type, front panel mounted, to allow easy c)ne-finger adjustment for transcribing convenience

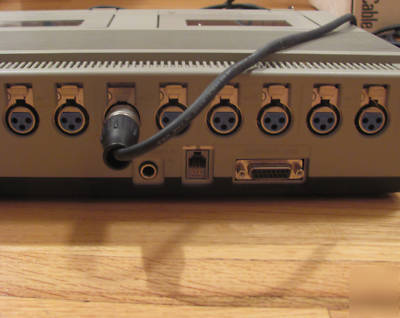

* 8 CANNON XLR MIC JACKS (two per channel) prevent accidental microphone removal and allow for extended audio coverage without radio frequency interference
* AUTOMATIC GAIN CONTROL ensures that proper recording levels are maintained automatically
* BUILT-IN TRANSCRIBE CAPABILITY allows unit to be used as a full-function transcriber
* DUAL CASSETTE WINDOWS enable users to view tape movement for each cassette
* RECORDING SYSTEM: 4 Track, 4 Channel Monaural. One Way
* TAPE SPEED: 2.4cm/sec (90min on DC-90) 1.2cm/sec (180min on DC-90)
* FAST WINDING TIME: Approx 2min 20sec with DC-90 Cassette
* FREQUENCY RESPONSE: 200 - 4,00OHz (1.2cm/sec)
* PLAYBACK SPEED CONTROL RANGE: Approx +50% to -1 0% of normal speed
* SPEAKER: 3 1/16" (7.7cm) Dia
* POWER REQUIREMENTS: 120V AC 60Hz
* DIMENSIONS (WHD): 13 7/8" x 3 1/2" x 13 1/2"
* WEIGHT: Approx 12 lbs 10 oz (5.7kg)
* INPUTS: 8 XLR-3 Type (Cannon) Microphone Inputs
Sensitivity 0.2mV (-72 dB) for Low Impedance Microphones
* OUTPUTS: Earphone Mini Jack (8 ohm)
Public Address Connector (Phone Jack) for 10 kohm Amplifier
* OTHER CONNECTORS: Transcribing Connector for optional FS-85 Foot Control Unit
