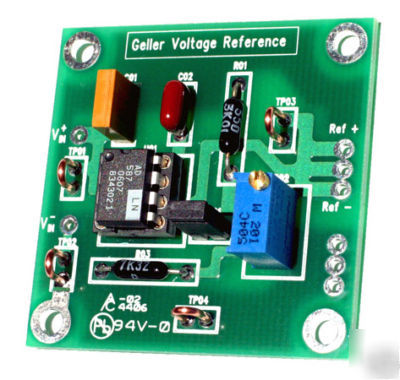

Pc board for a 5V or 10V standard voltage reference
These lead free boards can be assembled with either conventional or lead free solder. Performance is the same.
Note that you can also run this board without any of the trim components, accepting the value of the laser trimmed reference chip. In this reduced mode, you can omit R01, R03, trimmer R02, and the pins with the shorting jumper. For solder connected wires, you can also omit copper test points TP01 - TP04. It is, however, recommended to always include the two capacitors (bypass and noise reduction).
Parts List (parts not included):
AD587KN DIGIKEY AD587KN-ND (the AD587LN was discontinued)
C062K104K1X5CA MOUSER 80-CK06BX104K
ECQ-V1H104JL Digi-Key P4525-ND
3299W-1-102 MOUSER 652-3299W-1-102 (see manual)
TRIM R IRC 0.1% MOUSER 66-RC55LF-D-3.24K (for some 587 production runs: only if using a 200 ohm trimmer, 2.87K or 3.01K, see manual)
TRIM R IRC 0.1% MOUSER 66-RC55LF-D-7.32K (see manual)
COPPER LOOPS #18 SOLID COPPER WIRE
Mill-Max SOCKT MOUSER 575-193308
