RF2315R active rfid dual receiver module with rssi

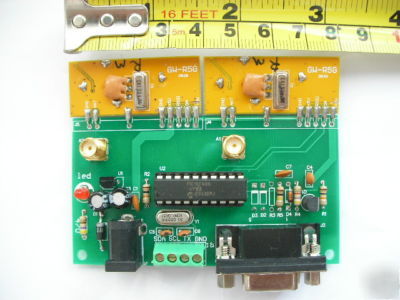

RF2315R Active RFID Dual Receivers Module with RSSI ( Dimensions, 8cm X 6cm )
The RF2315R active RFID receiver module receives data sent from RF8315T modules. The module will report the RSSI values of both on board receivers through serial port. There are 2 SMA connector for directional antenna connection. You can use the RSSI values to determine where the object is moving from.
* Plug and play. No need to send command to control the receiver
* Can read data from all of our active RFID transmitter
* 2 RSSI data will be reported that can be used to determine where the object is moving from.
* Superheterodyne design for maximum stability
* Reverse power input protection
* There is a RS232 TTL output for direct connect your other MCU or other circuit.
* I2C ready (Need to be customised according your specification)
315 MHz, 433 verison is also available
(4 characters ID, RSSIA,RSSIB)
RF2315R (directional antenna is not included. We will supply 2 straight wire as an antenna that match our receivers and you need to solder by yourselves)
We charge US$9.90 and US$7.90 for additional item for all countries.
