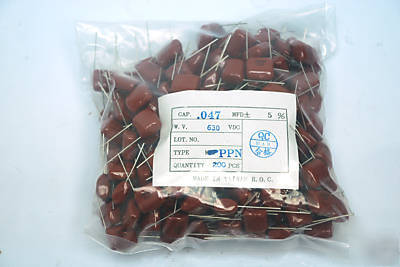

New 10 pcs ppn 630V 0.047UF capacitors +/-5% 1000MOHM
PPN 0.047uF 630V +/-5% Capacitors
PPN=Polypropylene film Non-Inductive
They are special higher quality than normal others, insulation at least 1000Mohm,
and working temperature at -40~+125C.
Sample tested on my HP LCR meter and D=0.05%, /Z/=89.9 @10Khz, D=0.1%, /Z/=89.8 @100Khz,
The outside dimension 18.5x10.0x17.5mm (WxTxH), lead pitch 16.0mm, lead lenght 26.5mm
Very well for any tubes radios or amplifiers application.
