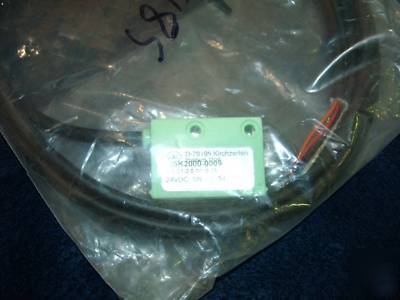

Magnetic encoder - siko products MSK2000-4
Magnetoresistive encoder - quadrature output. Used in conjunction with a magnetic band MB2000, the sensor forms a linear system.
insensitive to dust, shavings, humidity
signal output proportional to velocity
Note: for supply voltage 4 and output circuit LD it is necessary to use a terminating resistor of > 470 Ohm to prevent thermal stress
http:// /pdf/KDB_MSK2000_03-2009_E.pdf
