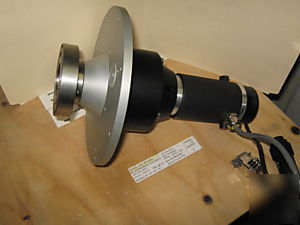

Electrocraft reliance S240-1A6 dc servo motor 0240-04
ELECTROCRAFT RELANCE S240-1A6 0240-04-021 DC SERVO MOTOR
Continuous Stall Torque 55 oz-in.
Rotor Inertia 0008 oz-in. /sec/sec
Damping Constant 0.25 oz-in./KRPM
Thermal Resistance 4 Deg. C/Watt
Max. Radial Load (1" from Bearing) 10 lbs.
Torque Constant 13.7 oz-in./amp
Electrical Time Constant 2.6 msec.
Mechanical Time Constant 8.9 msec.
Max. Continuous Current 4 Amps
