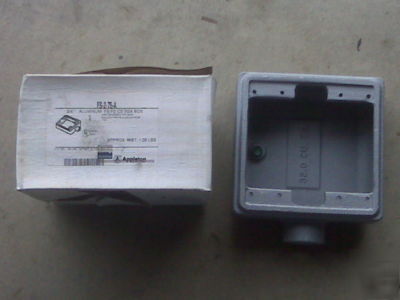

Appleton electrical box FS275A cast two gang box
Accommodate wiring devices such as
Provide excellent service in areas
where boxes are subject to rough usage.
Serve as pull boxes for conductors.
Permit access to conductors for maintenance.
Provide openings for making splices.
Allow connections for branch conduit
FS and FD blank bodies for special
conduit-entrance arrangements.
Corrosion-resistant ideal for indoor
Weatherproof, raintight and dust-tight
when used with cast gasketed covers.
FS and FD boxes take standard flush
FD boxes take devices exceeding
1-5/8 in depth under fastening ears.
Malleable iron for high tensile strength
and ductility provides greater resistance
Both malleable iron and aluminum
boxes have ridge top construction for
positive cover/gasket/box fit.
Accurately tapped, tapered threads for
tight, rigid joints, ground continuity.
Complete selection of covers, receptacles,
plugs, gaskets and accessories.
Covers have captive stainless steel
screws to speed installation, prevents
Internal grounding screws standard.
Available in single, two and three gang
Smooth, rounded integral bushing in
each hub protects conductor insulation.
Features: FDB Blank Bodies for Drilling
Drilling and tapping from 1/2 thru
FDB-2GL and FDB-3GL can also be
drilled and tapped in back of box (wall
Available in single, two, three and four
Brazed threaded hubs for threaded
conduit from 1/2 thru 1-1/2 and brazed
union hubs from 1/2 thru 1-1/4.
Cast Hub Device Boxes and Boxes
or copper-free (4/10 of 1% max.) aluminum.
Covers: malleable iron, steel, or copper-
free (4/10 of 1% max.) aluminum.
Malleable Iron Device Boxes: triplecoat (
1) zinc electroplate, (2) dichromate,
Aluminum Device Boxes: epoxy powder
Malleable Iron Covers with Gaskets:
triple-coat (1) zinc electroplate, (2) dichromate,
Steel Covers: zinc electroplate.
U.S. Federal Specification W-C-586B.
Appleton malleable iron products conform
which has the following properties: tensile
strength, 50,000 psi; yield, 32,000
Appleton aluminum products are produced BRAND NEW IN BOX/CASE
from a high strength copper-free
When ordering drilled and tapped
openings or brazed hubs for blank
bodies, refer to Ordering Information
