50W q-switched dpss laser system, diode pumped nd:yag

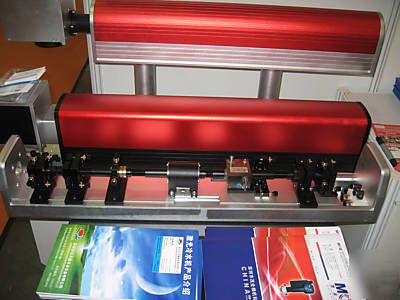

This is a 50W Q-switched laser system for industry or lab use.
1) Output Power: 1064nm, 50W (Rated at CW mode)
3) Beam Mode: TEM01 or Near TEM00 (with aperture)
4) Operating Current: 0-30A (Typical 25A)
1) One pc of 50W high power DPSS Laser head, which is mounted in our lab with imported bars.
2) One pc of Q-switch (QS-27-4S / 5S), provided by Qooch & Housego (UK)
3) One pc of Beam Expender (4x or 8x according to request), Imported
4) Laser Mirrors and Optic Mounts
5) Optic rail and mechanicals for the resonator
6) Metal covers for the whole laser head
7) Laser Diode Driver for the 50W DPSS Laser Module
You need a water chiller for the system. Recommended >1000W chiller power, around 0.15MPa pressure
1. Laser Marking & material processing
2. Laser welding & thin metal cutting
1064nm is invisual and you must pay attention to the security. It can blind your eyes immediately if got shot.
We provide customized product design.
