#10405 - 48" gray ringmaster cnc vertical boring mill

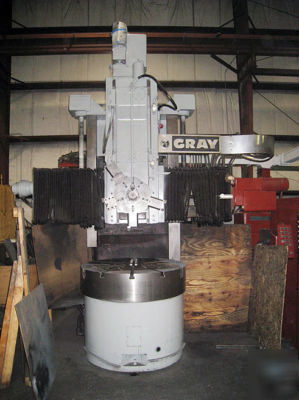

48" GRAY RINGMASTER CNC VERTICAL BORING MILL
Maximum swing without side head - Standard 56"
Table or chuck diameter - Standard 48"
Standard height under turret rail head saddle 48"

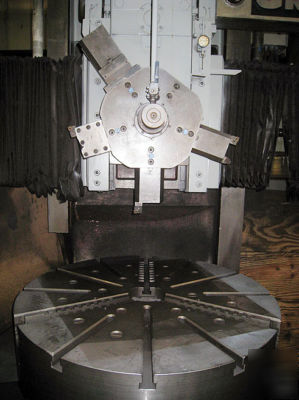

Bore size for 5-sided turret block,
Standard options available 2-3/4"

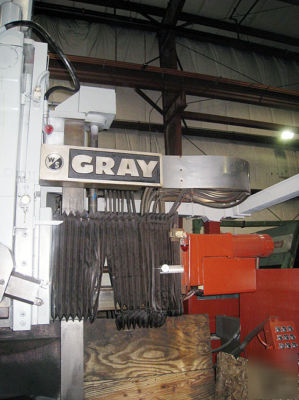

Rails Heads Standard "X" (Horizontal Travel):
Standard rail head travel, either side of table center,
Diameter table thrust bearing 41"
Bearing (table) load capacity at 50 RPM -
thousand pounds - 36,000 Hours - B-10 70
Standard table speed - RPM 4.8 - 287
Numerically controlled feed range - inches per minute .05" - 60"
Digital controlled feed range - inches per revolution .0005" - 2.000"
Traverse feed rates - inches per minute numrically controlled 200", Digital controlled 120"

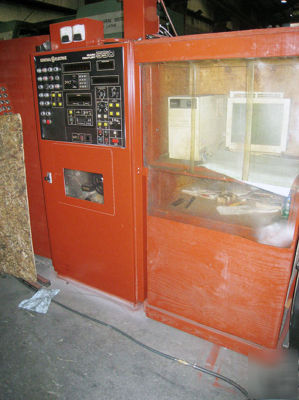

GE 550 Controls with PC update
