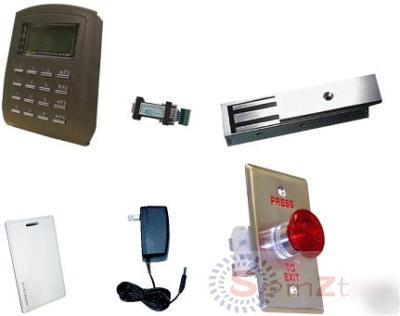

1 door access control kit with 1200LB lock and software
1 door Access control kit with 1200lb lock and software
WEATHERPROOF SECURITY DOOR CARD READER
This weatherproof proximity card reader is a perfect access control device for outside doors in factories, office buildings, and other sensitive areas. Maximum distance is approx. 18cm (7 inches). If you need to control access at a security door, this indoor/outdoor proximity card reader is a perfect choice for large applications.
Big and clear LCD display, 4 lines text, 1024 x 64 pixel graphic
Different time zone for each user
Auto-show work status (set via time zone edit)
Master cards range assignable
Built-in door sensing and arming inputs (on/off)
Auto open/close scheduling of doors
Built-in proximity reader and external Wiegand reader port
Auto-discriminating between stand-alone & networking system
Alarm function available (tamper, force entrance, door sense)
Door relay: 12VDC @ 2A NO/NC/COM 0.1-600 sec. latch type
Alarm relay: 12VDC @ 2A NO/NC/(jumper) 0.0-600 sec. (COM Common)
Transistor output: Arming / door sensor / card sensor
Tamper switch limit switch (form C)
Serial port: supported for AI-401R016, LED display, relay board, printer ETC. (4800, N, 8, 1)
Dimensions: 127mm x 91mm x 46mm (5" x 3.58" x 1.81")
SECURITY SYSTEM TRANSFORMER POWER SUPPLY 12V 1500MA
Make sure you program the reader before you install on to the wall.
Ensure that you strip the 12v1500ma transformer.
This transformer is connected straight to the reader. ( refer to the manual in side the box of the reader) When you have given power to the reader you will then give power to the maglock and exit button through the reader.
When installing the mag lock and exit button to the reader make sure you use 18/2 gauge wire. (if you purchased the software capability you must connect the CN-550 adapter with 18/2 gauge wire from the reader to your computer)
When installing the mag lock please make sure that the strike is not too tight. Keep the strike as loose as possible so it can make the proper contact with the lock.
Proceed to follow the instruction from the reader and mag lock.
ACC950 Reader Manual 2009.pdf (1331588 bytes)
ACC-950 Reader Easy Guide.pdf (138060 bytes)
How do I install the converter to the reader?.doc (60416 bytes)
