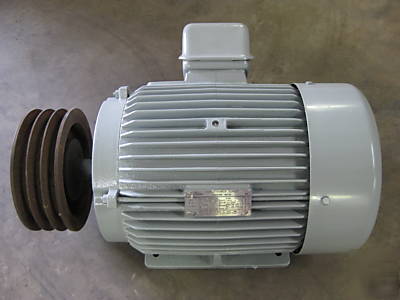

Toshiba B0204FFF2A3 induction motor 20 hp 1755 rpm 256T
World Power Series Induction Motor
Each Motor (BO2O4FFF2A3) is in Great Condition both Externally and Internally.
20 HP 4 Poles Class B Ins. NEMA Design B
Model: B0204FFF2A3 Frame: 256T Type: TIKK
Form: FBK1 Service Factor: 1.0 Volts: 230/460
Max. Amb.: 40 degrees C Phase: 3 Hz: 60
RPM: 1755 Amp: 50.2/25.1 CODE: G
Time Rating Cont. Bearings: Drive End: 6309 OPP. End: 6208
Usable on 208V Networks at 55.0 Amp.
