Shopfox used vertical & horizontal milling machine

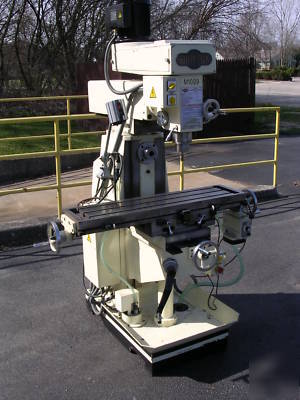

This is a used Woodstock ShopFox vertical and horizontal milling machine, it is a Model #M1009 and serial number is 02 and is a 1994 machine. It is 2 HP and is 110/220 single phase. It features a R8 vertical and horizontal spindle, the horizontal spindles included are 1" and 1-1/4" and it also includes a front arm support. It has a 9" x 39" table that is universal and swivels 45-degree left and right. It has 8 horizontal spindle speeds from 72 to 1300 RPM and 9 vertical spindle speeds from 270-2950. Spindle travel is 5", table travel of 22", cross travel of 8-1/2" and knee travel of 13". Vertical head tilt is 90-degree left and right, with turret or column swivel of 90-degree left and right. Maximum distance spindle to column is 27" and maximum distance spindle to table is 13-3/4" with OAL height of 80-5/16. Machine also includes work light, built in coolant system and table feed and weighs about 2200 lbs. A tremendous machine with many, many special features.
