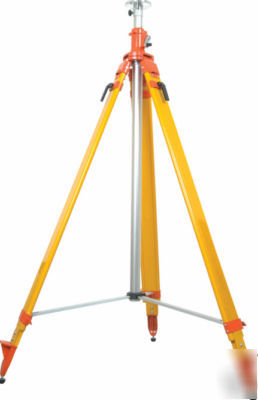

Seco machine control laser tripod-heavy duty & stable
Heavy-Duty, Machine Control, Extra-Tall Fiberglass Elevator Laser Tripod
Maximum Stable Laser Transmitter Height is 13+ feet
Collapsed Tripod Carrying Height is 6'
Tripod Height with all sections fully-extended is 12' 8"
Height with legs and column retracted is 5' 8"
Height with legs extended and column retracted is 9'
Adjustable Cranking Column extends 3' 8"
Legs: Top Section is 4' 8" - Bottom Section is 3' 8"
Leg Braces - Center of Column to Leg is 20"
Weight of Tripod is 33 lb.
The legs and dowels are constructed of fiberglass, resulting in durability, strength and resistance to weathering.
A detachable round head plate with a 5/8 x 11 stud gives your Laser a sturdy platform and fits right in the Laser Transmitter carrying case.
Lockable leg stabilizer struts, dual clamps, twist locks, quick clamps, along with dual metal and rubber leg points create greater stability.
NOT JUST A TRIPOD, A PIECE OF EQUIPMENT !
