Moeller compound pressure-vacuum gauge 30 hg 300 psig

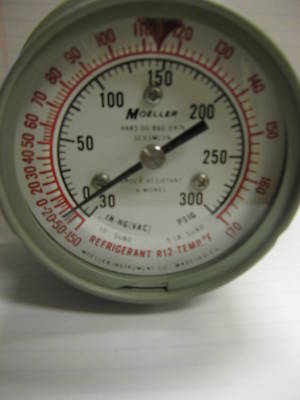

NOS MOELLER COMPOUND PRESSURE-VACUUM GAUGE 30 IN-Hg , 300 PSIG R12 . SCX3M13N.
Technical Characteristics ( ILs ) 6685-00-860-0976
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE
SCALE NAME FOR WHICH POINTER IS DESIGNED
PRESSURE AND VACUUM AND TEMPERATURE
SCALE INSCRIPTION/BACKGROUND COLOR
BLACK FIGURES ON WHITE BACKGROUND; BLACK FIGURES ON WHITE BACKGROUND; RED FIGURES ON WHITE BACKGROUND
1 PCT ACCURACY RATING ABOVE 5 PCT OF SCALE; 1 PCT ACCURACY RATING ABOVE 5 PCT OF SCALE; 1 PCT ACCURACY RATING ABOVE 5 PCT OF SCALE
5.0 DEGREES AND 5.0 INCHES AND 5.0 POUNDS PER SQUARE INCH
IN. HG VAC-PSIG-DEG F-REFRIGERANT 12
PRESSURE AND PRESSURE-VACUUM AND TEMPERATURE
-50.0 TO 170.0 DEG FAHRENHEIT AND 0.0 TO 30.0 INCHES OF MERCURY AND 0.0 TO 300.0 POUNDS PRESSURE PER SQUARE INCH
20.0 DEGREES AND 30.0 INCHES AND 25.0 POUNDS PER SQUARE INCH
L.P.COMPRESSORS; SYSTEMS D2N2; CHILLED WATER A/C SYSTEMS; SONAR DOME RUBBER WINDOWS; POSEIDON MATERIAL; PROPULSION SYSTEMS
