Pulley belt drive with clutch and brake

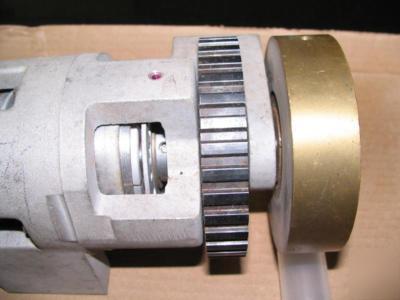

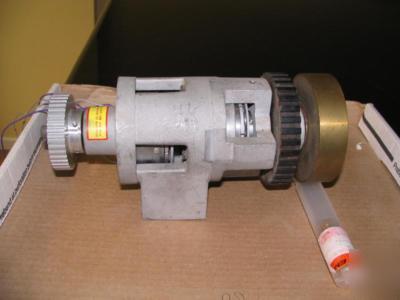

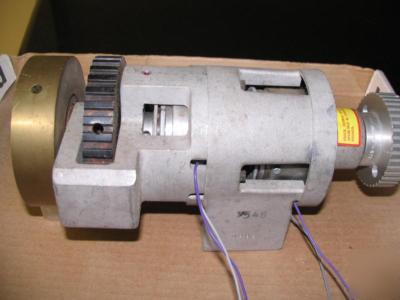

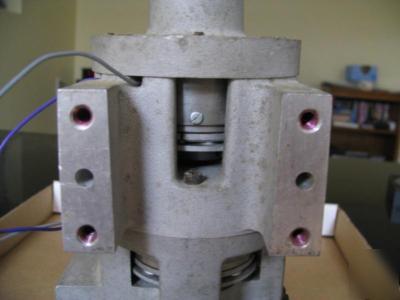

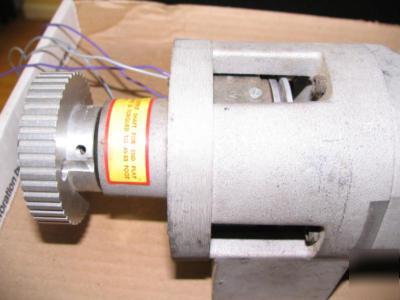

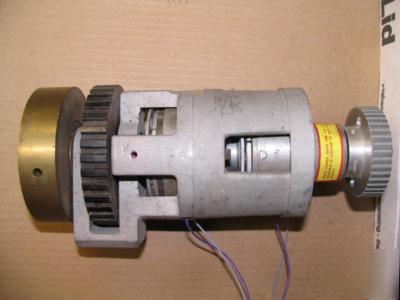

For Sale is a used Clutch and Brake Drive Pulley System. I believe that the input shaft is the shaft with the aluminum Pulley whose size stamped on the pulley is 42XL8037. The input shaft is coupled to the output shaft shown with a brass Counterweight thru what I believe is a 12-24VDC clutch. I cannot read the pulley s number on the output shaft. The input shaft can be locked in place by energizing the second clutch. The base of the second clutch is attached to the aluminum frame, I believe that this clutch is also a 12-24VDC clutch. The mounting portion has 4 tapped holes and can be pinned for alignment. The clutches look like Warner Electric clutches but I ve not taken the item apart to verify. There are the manufacturer numbers on the clutches that can be seen but not fully read. Both the input an doutput shafts turn freely.
The unit is about 10.5 long and 4.5 wide and 5.25 high
This item could be used in robotics, an electric car, or in a servo positioning system.
