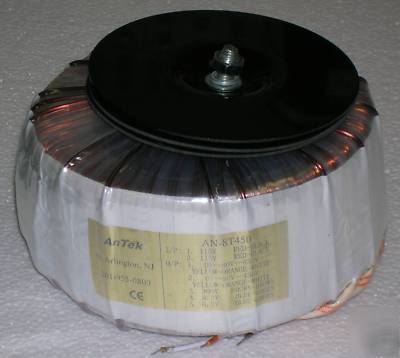

450V 800VA high power toroidal tube amp transformer
Load Test Result: TEST CONDITION: Input 120VAC 60Hz to the primary coil (parallel both coils), 500 ohm 250W resistors as dummy load and room temperature at 25 degree C. No load is connected on the 6.3V and 300V coils during this test.
1. Parallel 450V coils = 467Vac at 0.0A, Power = 0 Watt
2. Parallel 450V coils = 461Vac at .47A, Power = 216 Watt
3. Parallel 450V coils = 455Vac at .91A, Power = 414 Watt
4. Parallel 450V coils = 447Vac at 1.6A, Power = 715 Watt
Dimension 6.6 Diameter x 3.5 High.
