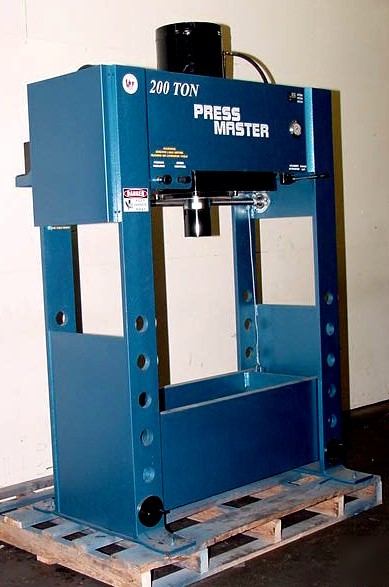

200 ton 16" strk pressmaster 200T-e/h h-frame hydraulic
200 Ton 16" Strk Pressmaster 200T-E/H H-FRAME HYDRAULIC
200 Ton 16" Stroke Pressmaster 200T-E/H H-FRAME HYDRAULIC PRESS, Pressure Regulator, Variable Speed,
200 TON PRESSMASTER H-FRAME HYD. PRESS
NEW - IN STOCK FOR IMMEDIATE DELIVERY
RATED CAPACITY, TONNAGE .......................... 200
STROKE ........................................... 16"
BORE ............................................. 11"
RAM SPEED (Inches/minute) PRESSING ...(VARIABLE).. 0-9
RAM SPEED (Inches/minute) RETURN ................. 13
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)............ 42"
DISTANCE BETWEEN POSTS (FRONT TO BACK)............ 20"
MAXIMUM DISTANCE FROM BED TO RAM ................. 28"
OVERALL HEIGHT ................................... 75"
OVERALL WIDTH .................................... 54"
OVERALL DEPTH .................................... 39"
WEIGHT ........................................... 4,500#
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS
- PRESSURE REGULATOR TO LIMIT RAM PRESSURE
- VARIABLE RAM SPEED ALLOWS OPERATOR TO SELECT THE PROPER SPEED FOR THE TASK
- DOUBLE ACTING CYLINDER PERMITS PULLING AS WELL AS PRESSING RAM ACTION
- HYDRAULIC POWER LIFT TABLE CONTROLLED WITH A HAND LEVER
- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES
- SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT
- PANEL MOUNTED PRESSURE GAUGE
- SAFETY VALVE FOR OVERLOAD PROTECTION
- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB
- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL
TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER
- LOW SPEED PUMP, QUIET AND DEPENDABLE
- BALDOR 10 HP, 230/460 VOLT MOTOR, THREE PHASE
CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE
