Circuit breaker 40A/40 amp 12-24-36-48-80 volt dc #161

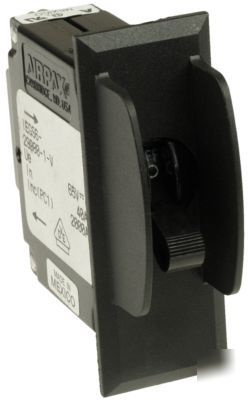

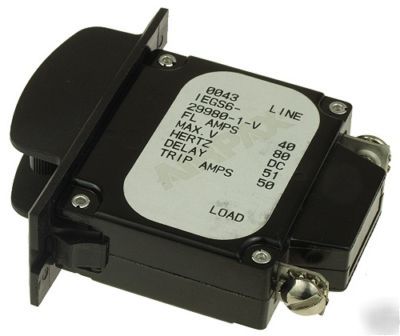

New Panel Mount 40 Amp, 80 Volt DC Circuit Breaker
Brand new Airpax panel mount circuit breaker.
Rated at 40 Amps with a maximum Voltage of 80VDC. These circuit breakers have protective side guards on both sides of the actuation lever. These breakers have built-in spring-loaded mounting clips on the top and bottom which snap into place when the breaker is mounted into a panel opening. These circuit breakers are designed for the 12-80 Volt DC range and are for use with 40 Amp continuous duty loads and they have a trip Amp rating of 50 Amps.
Mounting Hardware: Built-In Spring-Loaded Mounting Clips
Overall Dimensions: 2-1/4" Tall x 3/4" Wide x 2-3/4" Deep (including reset handle and wiring terminals)
Housing Dimensions: 2-1/8" Tall x 3/4" Wide x 2-1/4" Deep (not including reset handle and wiring terminals)
Mounting Hole Size: 2-1/8" Tall x 3/4" Wide Rectangular Hole
Breaker Ratings: 40 Amp, 65 Volt DC, 80 Volt DC Maximum
Connection Leads: Bolt Terminal
Approvals: Underwriters Laboratory (UL), CSA, and DVE Approved
